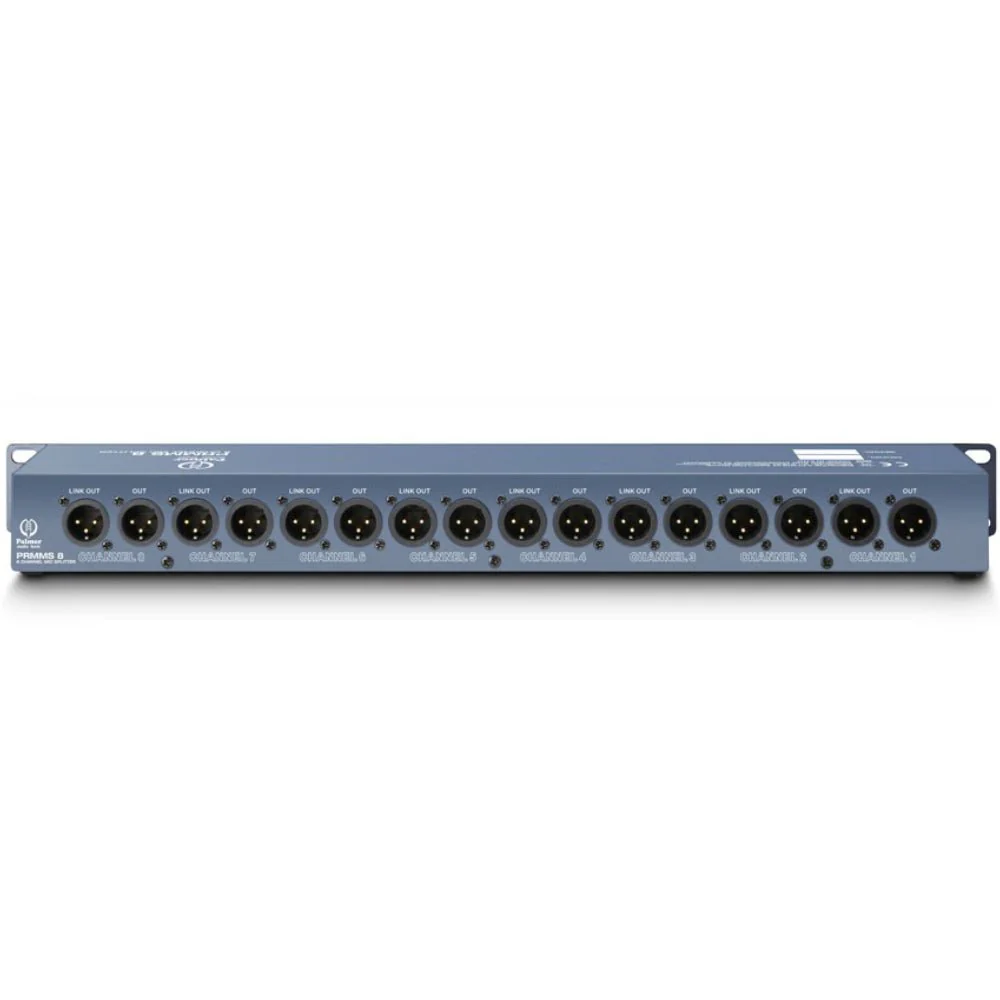

Palmer | PRMMS8 | 8 Channel Microphone Splitter | 19 inch Rack Mount Unit

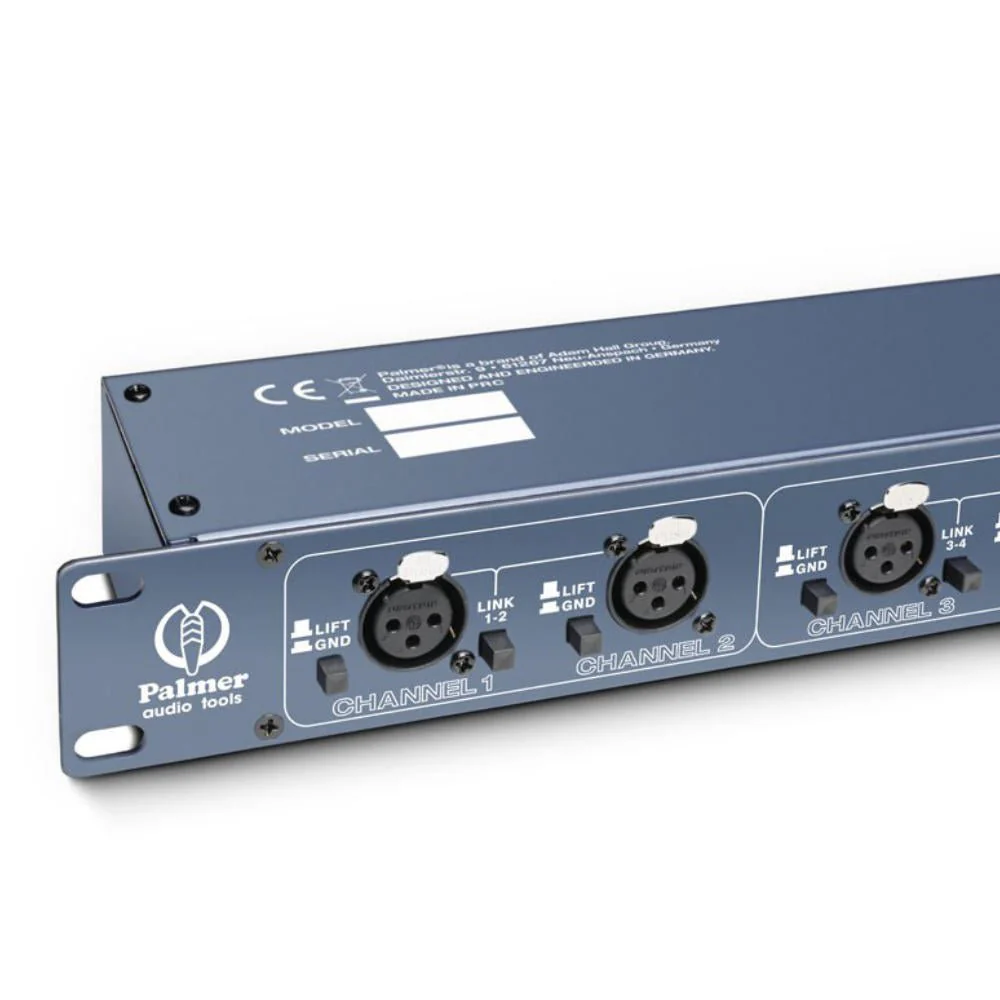

The PRMMS8 is an ultra low noise 8-channel microphone splitter providing a direct output and a transformer isolated output for each balanced XLR input. For extra flexibility, four front panel switches enable channel linking which permits routing a single input signal to multiple outputs feeding FOH, monitor, recording and broadcast mixing consoles, or merging two input signals into a single output. For use with condenser microphones, the direct outputs serve as a path for phantom power. Each channel includes a ground lift switch to eliminate hum and interference caused by ground loops between electronic equipment connected to the PRMMS8.

Product type	Splitters
Type	mic split
Split type	1 in 1 +1
Channels	8
Inputs	1
Input connectors	XLR
Max. input level	+5 dBu
Number of split-outputs per canal	1
THRU outputs/channel	1
Max Output Level	+5 dBu
Output connectors	XLR
Transformer isolated outputs	Yes
Cabinet material	sheet steel
Cabinet surface	Powder coated
Width	483 mm
Width	19 "
Depth	73 mm
Height	44.5 mm
Height	1 U
Weight	1,3 kg
