Palmer | PAN01 | Passive DI Box | Mono
PAN 01 DI Box passive

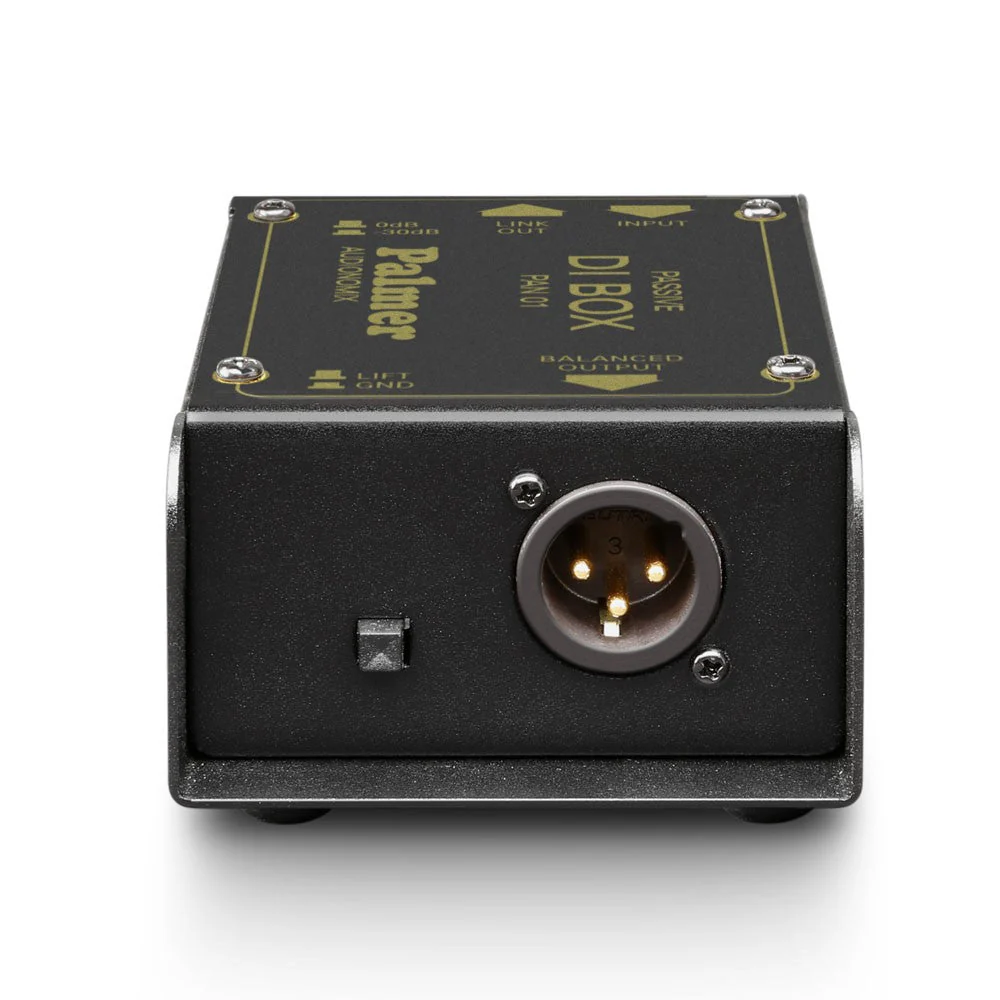

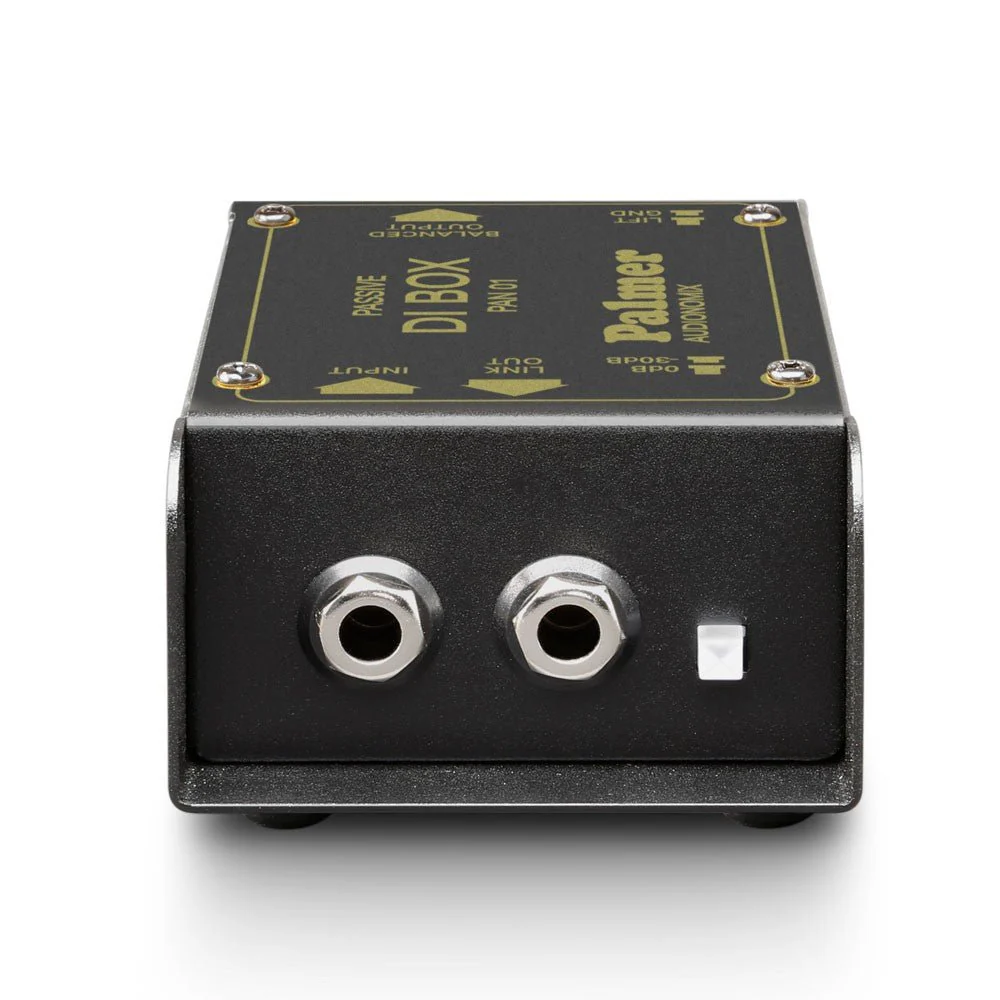

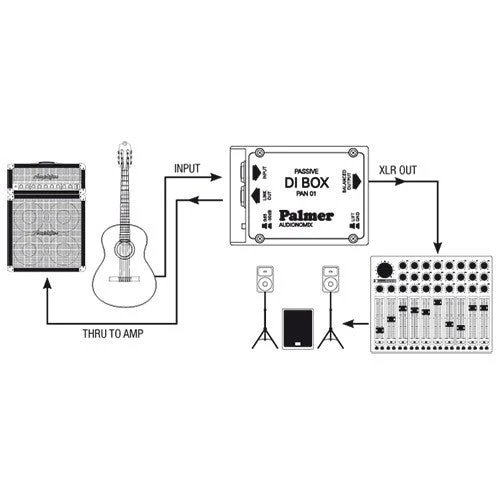

Passive DI box. Jack input with paralell "THRU" output, transformer balanced XLR output. Attenuable input sensitivity, can handle both line level and speaker level signals.
Specifications
| Product type | DI Boxes |
| Type | passive |
| Channels | 1 |
| Inputs | 1 |
| Input connectors | 6.3 mm jack |
| Max. input level | + 54 dBu |
| Input impedance | (@ 60 Hz) 60k Ohm(s) |
| Input pad | 0 / -30 dB |
| Outputs | 1 |
| THRU outputs/channel | 1 |
| Output connectors | 6.3 mm jack , XLR |
| Max. output level | + 4 dBu |
| Output impedance | 600 Ohm(s) |
| Frequency response | 20 - 20000 Hz |
| Transformer balanced | Yes |
| Ratio | 10 : 1 |
| Controls | attenuator , ground lift |
| Cabinet material | sheet steel |
| Cabinet surface | Powder coated |
| Width | 110 mm |
| Depth | 73 mm |
| Height | 42 mm |
| Weight | 0,34 kg |
$52.75
Palmer | PAN01 | Passive DI Box | Mono—
$52.75
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
PAN 01 DI Box passive
Passive DI box. Jack input with paralell "THRU" output, transformer balanced XLR output. Attenuable input sensitivity, can handle both line level and speaker level signals.
Specifications
| Product type | DI Boxes |
| Type | passive |
| Channels | 1 |
| Inputs | 1 |
| Input connectors | 6.3 mm jack |
| Max. input level | + 54 dBu |
| Input impedance | (@ 60 Hz) 60k Ohm(s) |
| Input pad | 0 / -30 dB |
| Outputs | 1 |
| THRU outputs/channel | 1 |
| Output connectors | 6.3 mm jack , XLR |
| Max. output level | + 4 dBu |
| Output impedance | 600 Ohm(s) |
| Frequency response | 20 - 20000 Hz |
| Transformer balanced | Yes |
| Ratio | 10 : 1 |
| Controls | attenuator , ground lift |
| Cabinet material | sheet steel |
| Cabinet surface | Powder coated |
| Width | 110 mm |
| Depth | 73 mm |
| Height | 42 mm |
| Weight | 0,34 kg |
