Palmer | PAN03 | 4 Channel DI Box | 19 inch Rack Mount Unit | Active

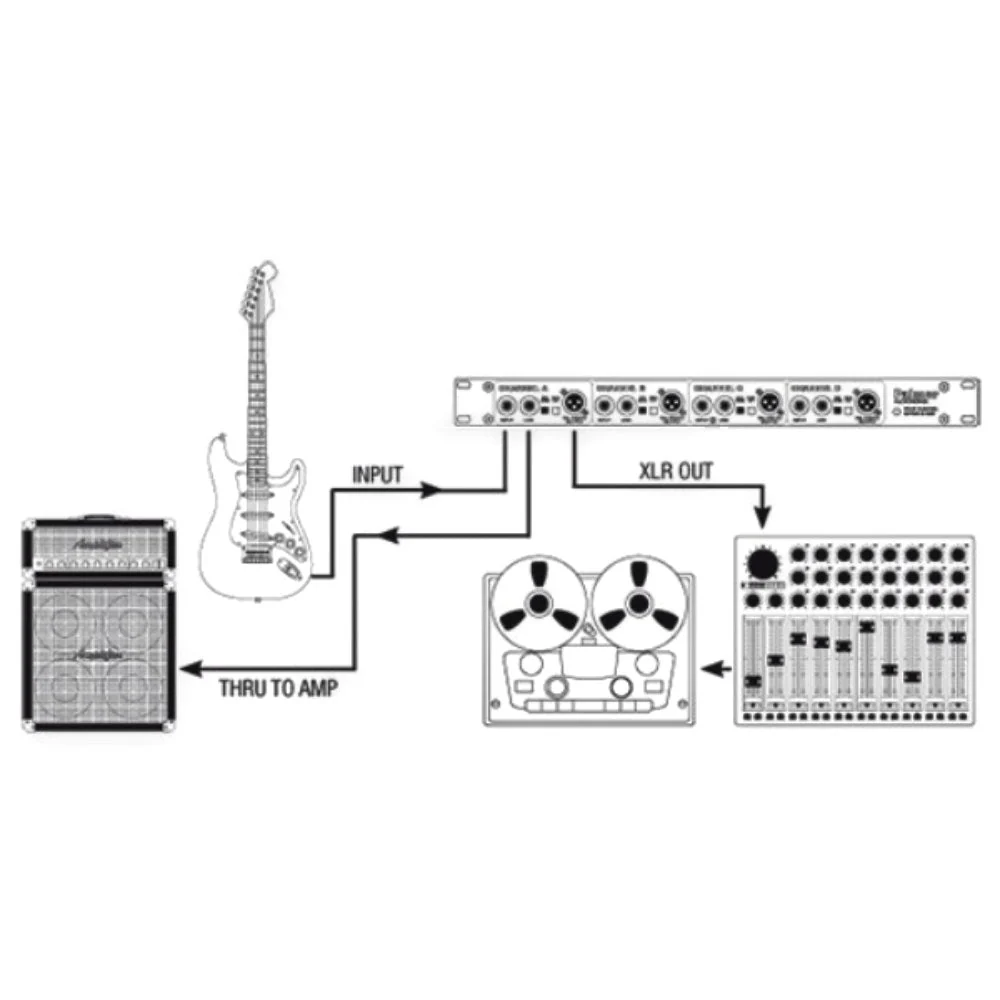

The Palmer PAN 03 gives you an Active 4-Channel DI Box in 19″ rackmount format. Each channel on the PAN 03 features a jack input with a parallel output for passing through the signal. There’s also an attenuation switch (-30 dB) that allows either a line or loudspeaker signal to be connected.

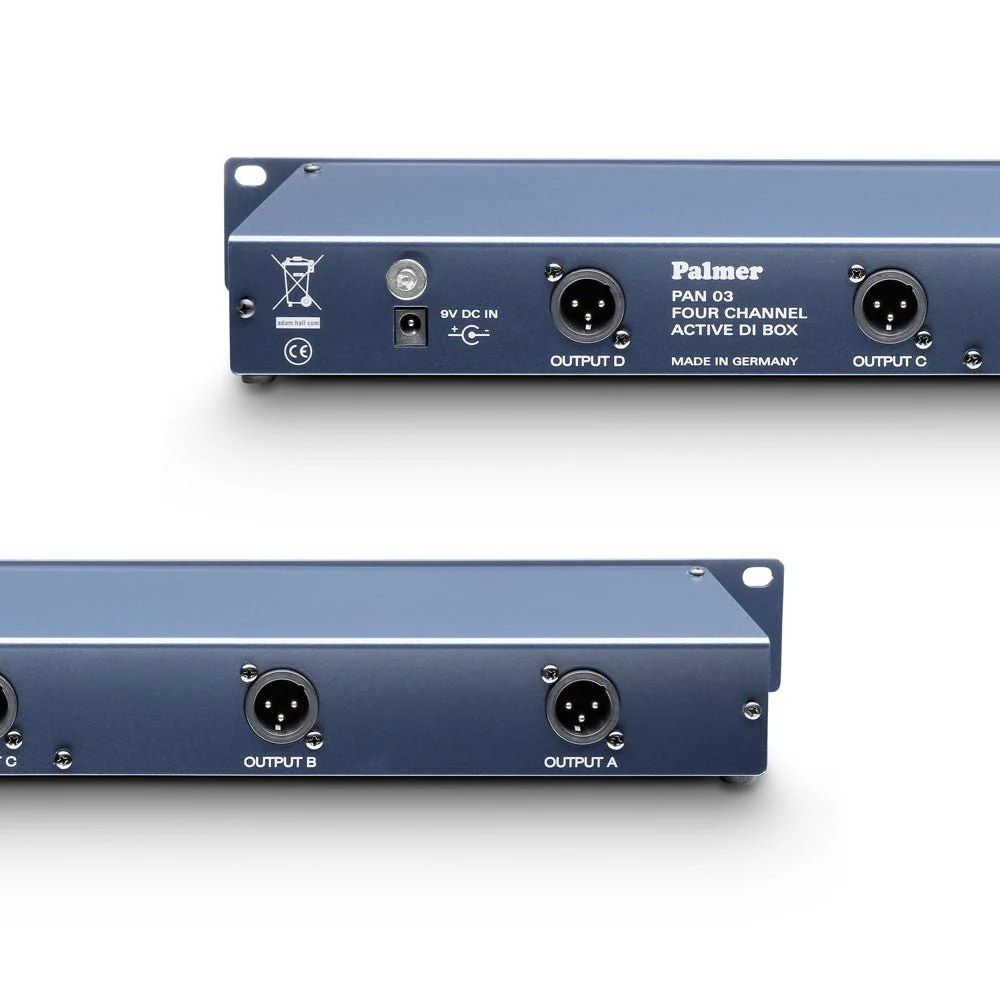

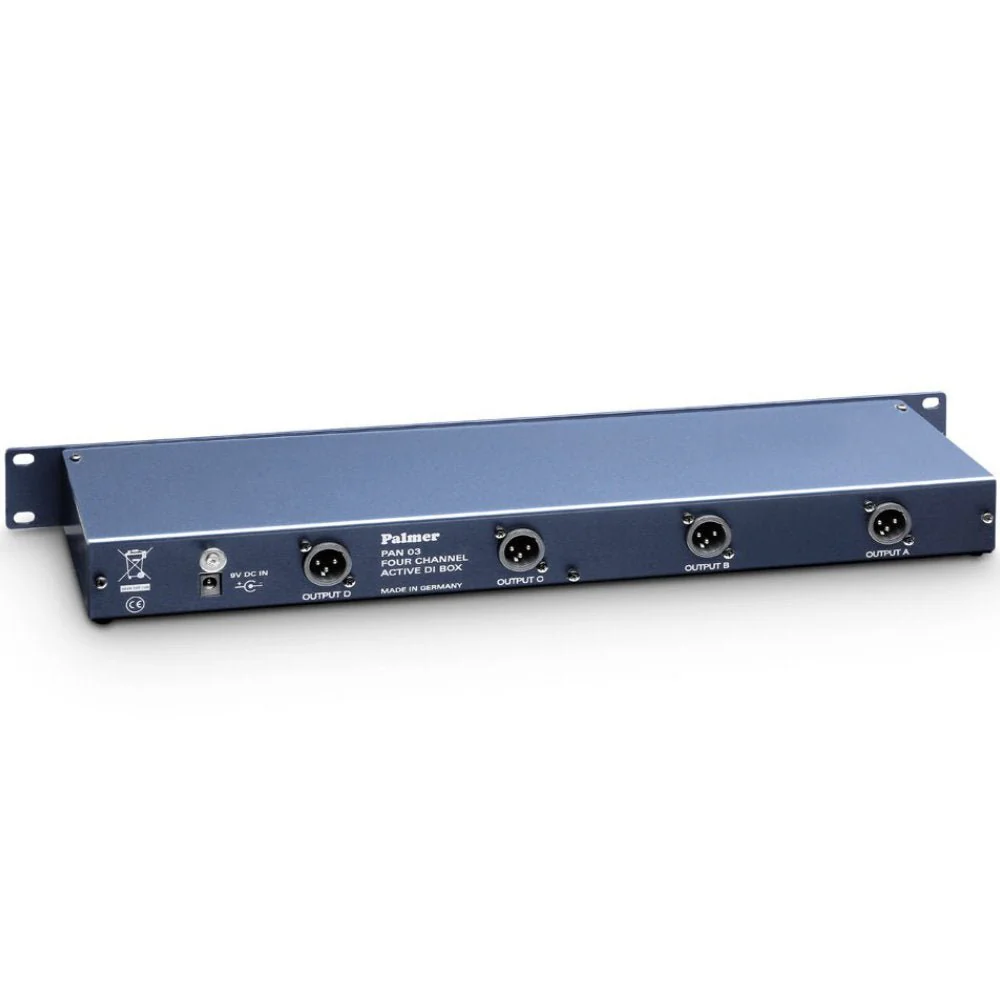

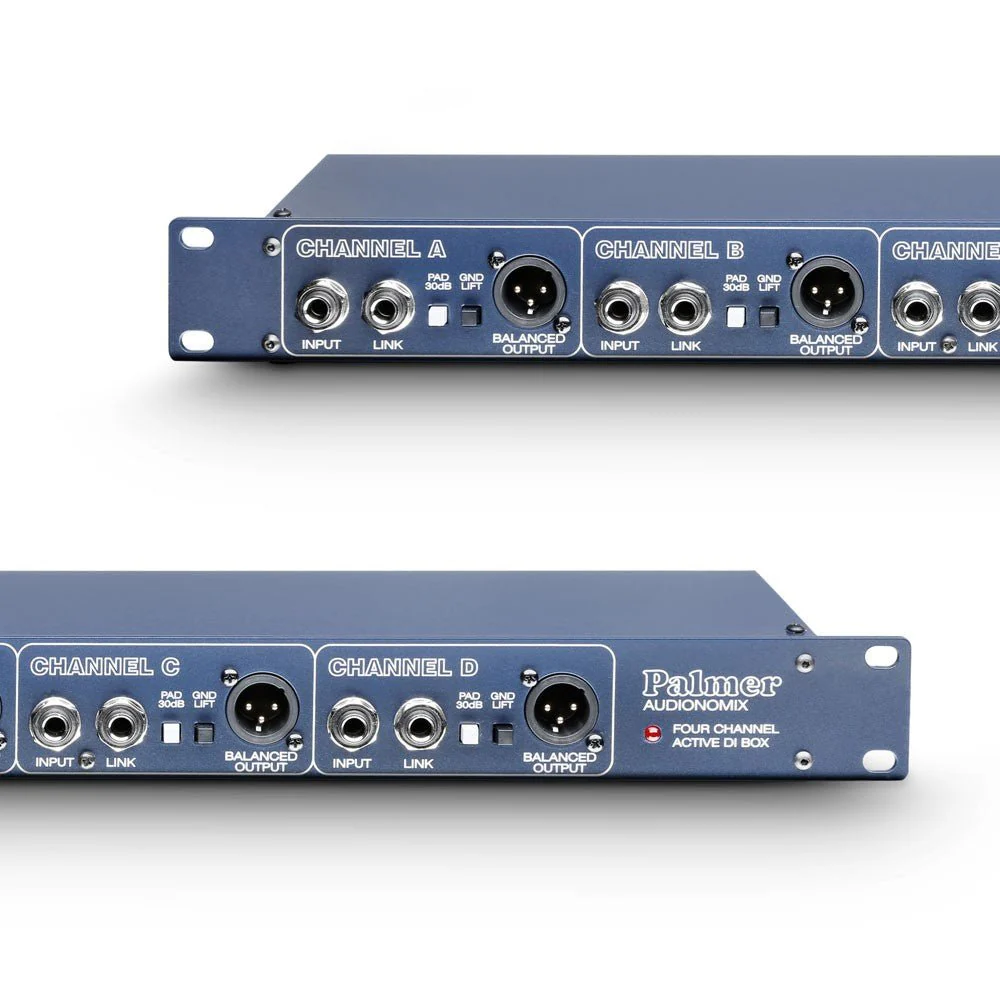

Although the PAN 03 is identical to the PAN 02 in terms of technical specs, the PAN 03 is primed for mains operation. With all connections and switches on the front panel, as well as an additional parallel XLR output on the back. The PAN 03 takes up 1 rack space and measures 90mm from front to back.

Product type: DI Boxes

Type: active

Channels: 4

Inputs: 4

Input connectors: 6.3 mm jack

Max. input level: + 45 dBu

Input impedance: (@ 60 Hz) 1 M Ohm(s)

Input pad: 0 / -30 dB

Outputs: 4 (+ 4 parallel XLR outs)

THRU: outputs/channel 1

Output connectors: 6.3 mm jack , XLR

Max. output level: + 10 dBu

Output impedance: 600 Ohm(s)

Frequency response: 10 – 20000 Hz

Transformer: balanced Yes

Ratio: 10 : 1

Indicators: Power

Controls: attenuator , ground lift

Operating voltage: external

Cabinet material: sheet steel

Cabinet surface: Powder coated

Width: 480 mm

Width: 19 “

Depth: 90 mm

Height: 45 mm

Height: 1 U

Weight: 1,6 kg
