Jad & Freer Audio | EDISON | DC-DC Converter | Polarity & Voltage Converter
EdisonĀ is a small power supply module that allows you to transform any DC voltage (from 9 to 30VDC with a central negative pole) into one of a different value, selectable fromĀ 9,12,15,18, andĀ 24vdc; in addition to this you can alsoĀ invert the polarityĀ and thus obtain voltages with a central positive pole.

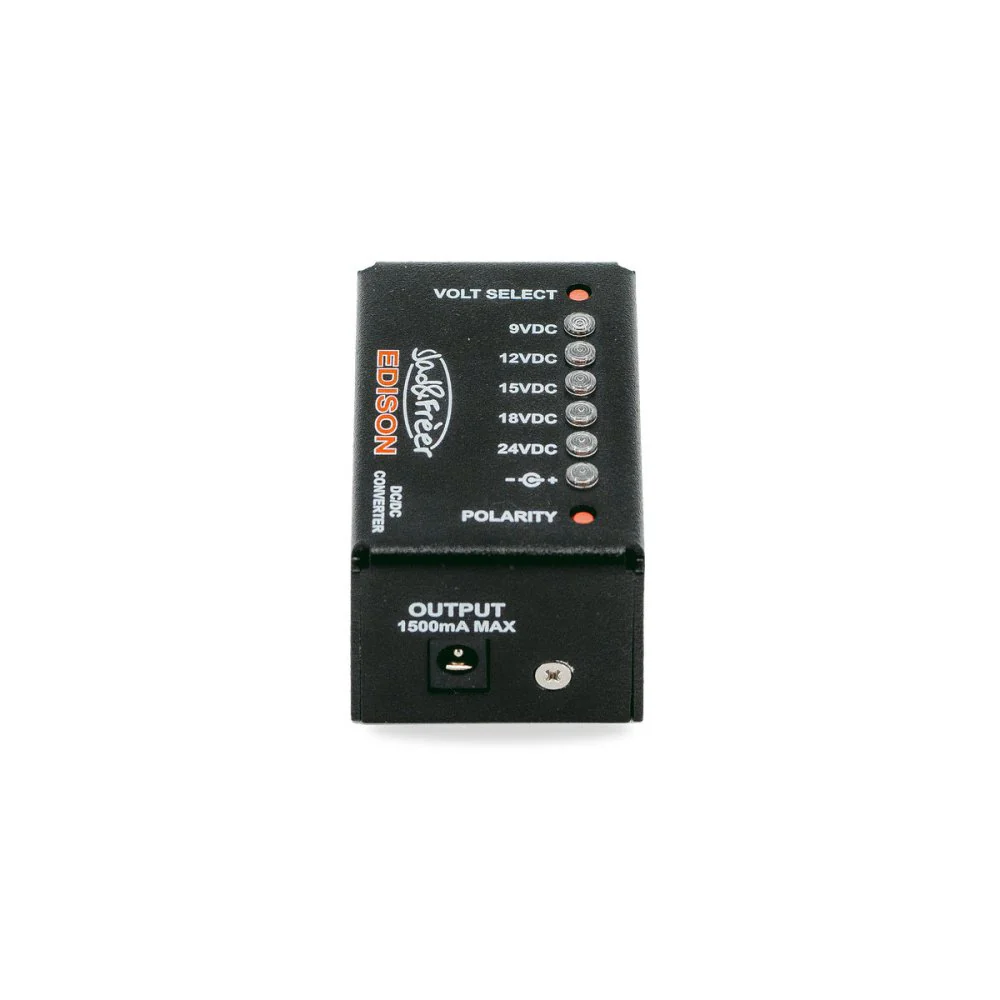

The selection of voltage and polarity takes place via two small buttons and is highlighted by the respective reference LEDs. Both buttons are slightly below the container, so you will need to use a pencil / pen or any other pointed object for editing.
- voltage converter for pedal effects
- can deliver up toĀ 1500mA @ 9VDC
- output voltages: 9/12/15/18/24 VDC
- reversible polarity
- 9-36 VDC input power supply
- powers up as per the last setting
- minimum size and weight
- totalĀ absenceĀ ofĀ magnetic audible fields
- short circuit protection
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
EdisonĀ is a small power supply module that allows you to transform any DC voltage (from 9 to 30VDC with a central negative pole) into one of a different value, selectable fromĀ 9,12,15,18, andĀ 24vdc; in addition to this you can alsoĀ invert the polarityĀ and thus obtain voltages with a central positive pole.
The selection of voltage and polarity takes place via two small buttons and is highlighted by the respective reference LEDs. Both buttons are slightly below the container, so you will need to use a pencil / pen or any other pointed object for editing.
- voltage converter for pedal effects
- can deliver up toĀ 1500mA @ 9VDC
- output voltages: 9/12/15/18/24 VDC
- reversible polarity
- 9-36 VDC input power supply
- powers up as per the last setting
- minimum size and weight
- totalĀ absenceĀ ofĀ magnetic audible fields
- short circuit protection
