CIOKS | SuperPower Bundle | DC7 & CIOKS8 Gift Box | AU Warranty

When you are building the ultimate pedalboard, you need a flexible, powerful and reliable power supply. With the CIOKS Superpower Bundle, you’ll get just what the doctor ordered! This stellar combo combines the award winning CIOKS DC7 with the CIOKS 8 Expander, to provide a total of fifteen isolated outlets, each with four switchable voltages, plus a USB outlet for your smartphone or tablet.

In order to give you total flexibility when using both DC7 and CIOKS 8 within your setup, the ‘Superpower Bundle’ also includes two DC Link cables in different lengths. This allows you to connect and mount both units on the same board or the ability to separate them. For example, the DC7 on your main pedalboard and the CIOKS 8 Expander on a separate companion board.

The CIOKS ‘Superpower Bundle’ allows you to expand the number of available outlets even more for your pedals - by either purchasing a CIOKS 4 Expander Kit or another CIOKS 8 Expander and connecting it to the 24V DC link outlet on the included CIOKS 8 - making it as future-proof as possible. Both DC7 and CIOKS 8 are compatible with the separately available CIOKS GRIP, which allows for super easy drill-free mounting underneath Pedaltrain boards.

Specifications:

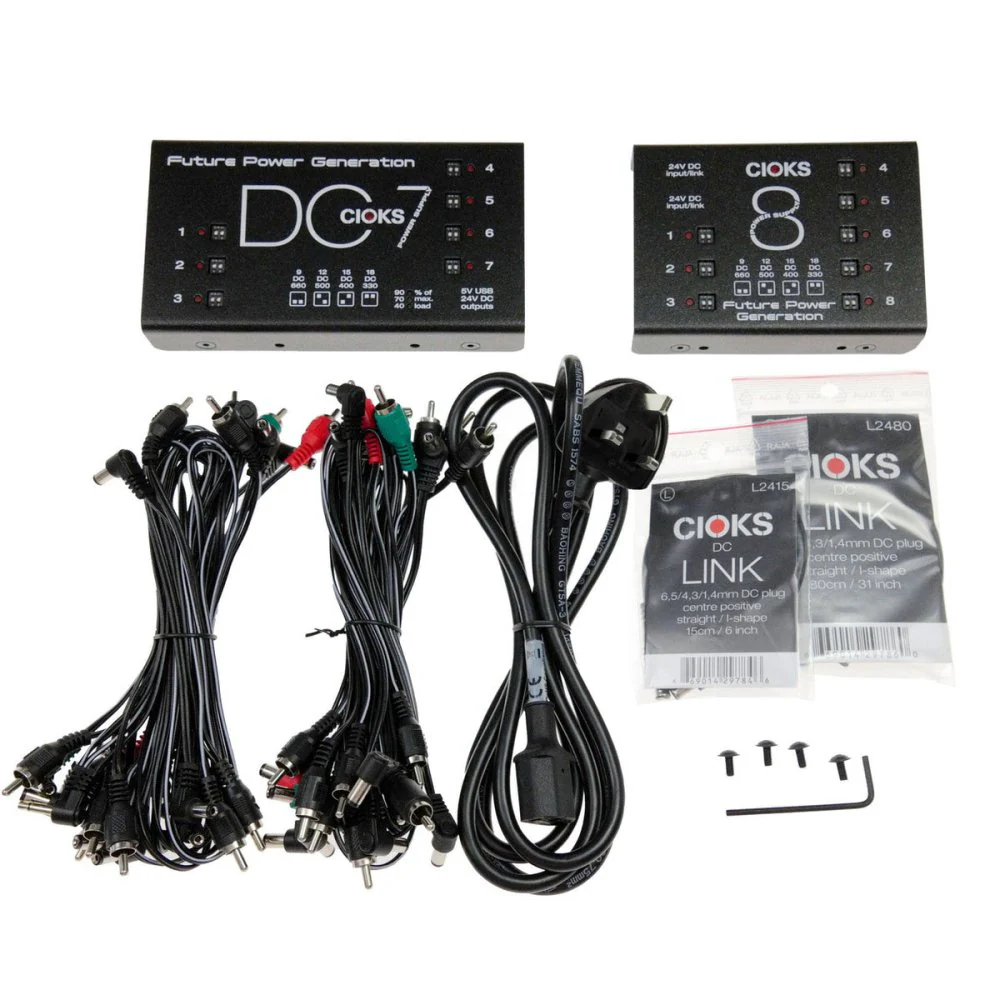

• Future Power Generation Bundle containing CIOKS DC7 and CIOKS 8 multi-outlet power supply units
• Both units only 2.5 cm in height
• Ultra-low noise achieved by multistage filtering
• 15 outlets with 6 watts output power each on CIOKS DC7 and CIOKS 8 combined
• 4 selectable voltages on each outlet on both CIOKS DC7 and CIOKS 8
• (9V DC at 660 mA / 12V DC at 500 mA / 15V DC at 400 mA / 18V DC at 330 mA)
• 42 Watts total maximum output power from all 15 DC outlets combined
• Can be expanded by connecting either a separately sold CIOKS 4 Expander Kit or another CIOKS 8 Expander
• 5V USB-Output for max. 1 A on DC7
• 24V DC auxiliary outlet with max. 2A on CIOKS 8
• Three LED power meter showing the total load of both power supplies
• Mounting hardware for Pedaltrain and Templeaudio boards and hex-key included
• Compatible with CIOKS GRIP for drill-free mounting on Pedaltrain boards (sold separately)
• 24 Flex cables included:
• 14 x Standard Flex type 1 – black with 5.5/2.1 mm centre negative DC plug
• 2 x Standard Flex type 2 – red with 5.5/2.1 mm centre positive DC plug
• 2 x Standard Flex type 4 – green with 5.5/2.5 mm centre positive DC plug
• 2 x Standard Flex type 5 – black with tip positive 3.5 mm Jack plug
• 2 x Split Flex type 1 – black with two 5.5/2.1 mm centre negative DC plugs
• 2 x 3-way daisy chain Flex type 1 – black with three 5.5/2.1 mm centre negative DC plugs
• 2 DC Link cables included - for connecting CIOKS 8 to the DC/’s 24V DC aux
• 1 x L2415 – black with EJAI plug at each end, 15 cm
• 1 x L2480 – black with EJAI plug at each end, 80 cm
• Designed in Denmark, assembled in Poland
