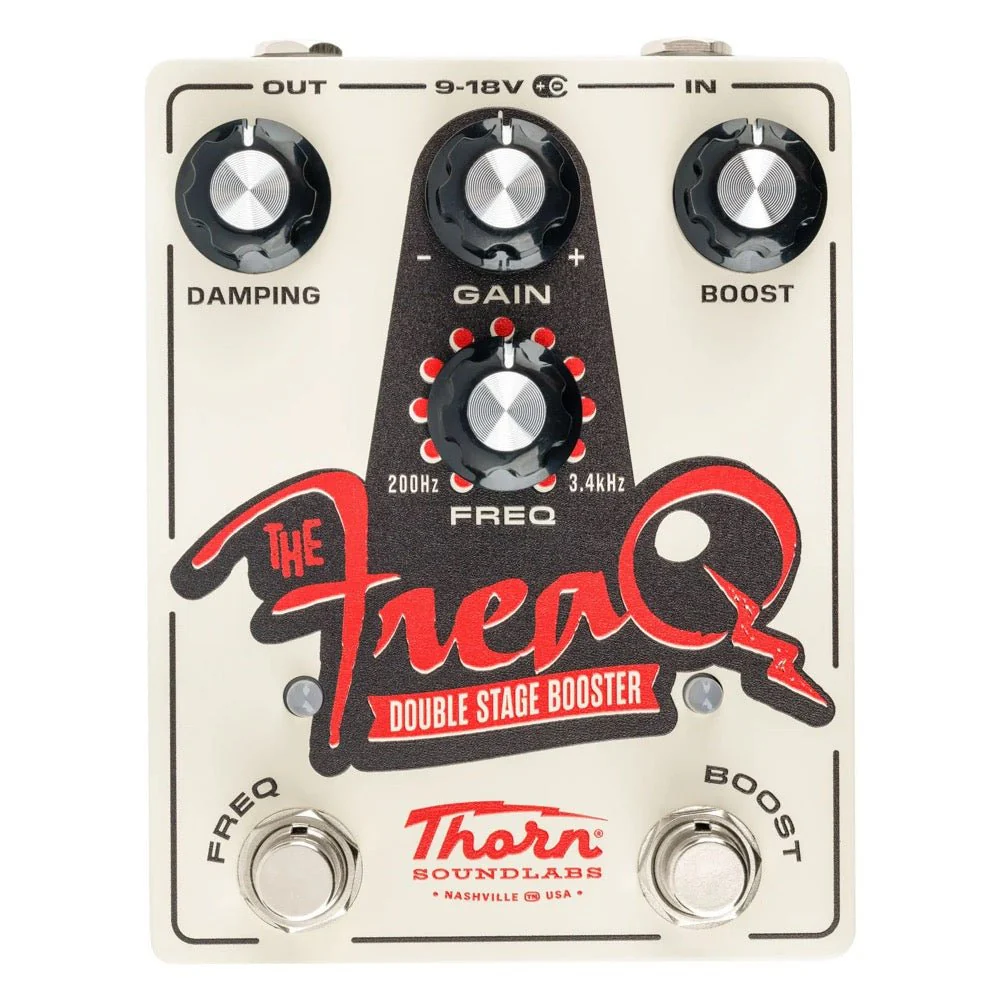

Thorn Soundlabs | The Freaq | Double Stage Booster

Two Stages, Infinite Tonal Possibilities

The FREAQ is a highly flexible booster pedal designed to provide an extra punch and tonal control for your guitar. With its intuitive controls—Damping, Gain, Boost, and Freq—this pedal allows you to dial in everything from subtle boosts to powerful, stage-ready tones. The Freq control lets you fine-tune a targeted frequency range of additional boost or cut, offering even more tonal versatility. The Thorn The FREAQ is a must-have tool for guitarists who want to push their sound to new levels, whether boosting volume, adding tonal clarity, or fine-tuning the frequency response.

• Flexible Double Stage Booster
• variable frequency sweep range boost: 300 Hz – 3.4 kHz
• linear boost up to +20dB
• perfect for pairing with pedals or with any (tube) amplifier
• all analog
• controls: Damping – Gain – Boost – Freq
• the Damping control adjusts how much low-frequency sound reaches the distortion circuit
• footswitches: Effects Bypass & Boost – Freq
• hardwire true bypass
• status LED: Freq & Boost
• input: 1/4” (6.35 mm) mono TS jack
• output: 1/4” (6.35 mm) mono TS jack
• input impedance = 470 kOhm
• output impedance = 2.2 kOhm
• power supply: 9 – 18V DC – NOTE: do not connect more than 18V DC
• current draw: max. 30 mA
• power supply connector: 5.5 x 2.1 mm barrel plug, center negative
• power supply not included
• no battery operation possible
• dimensions: Width x Depth x Height: 3.70" x 4.72" x 1.50" (94 x 120 x 38 mm)
• dimensions with switches, jacks & knobs: 3.70" x 4.86" x 2.09" (94 x 123.5 x 53 mm)
• weight: 0.82 lbs. (370 g)
