Warwick | Rockboard | Power MOD 75 | Class D Power Amp Module For Pedalboards | w/ DI, Cab Sim & Headphone Output

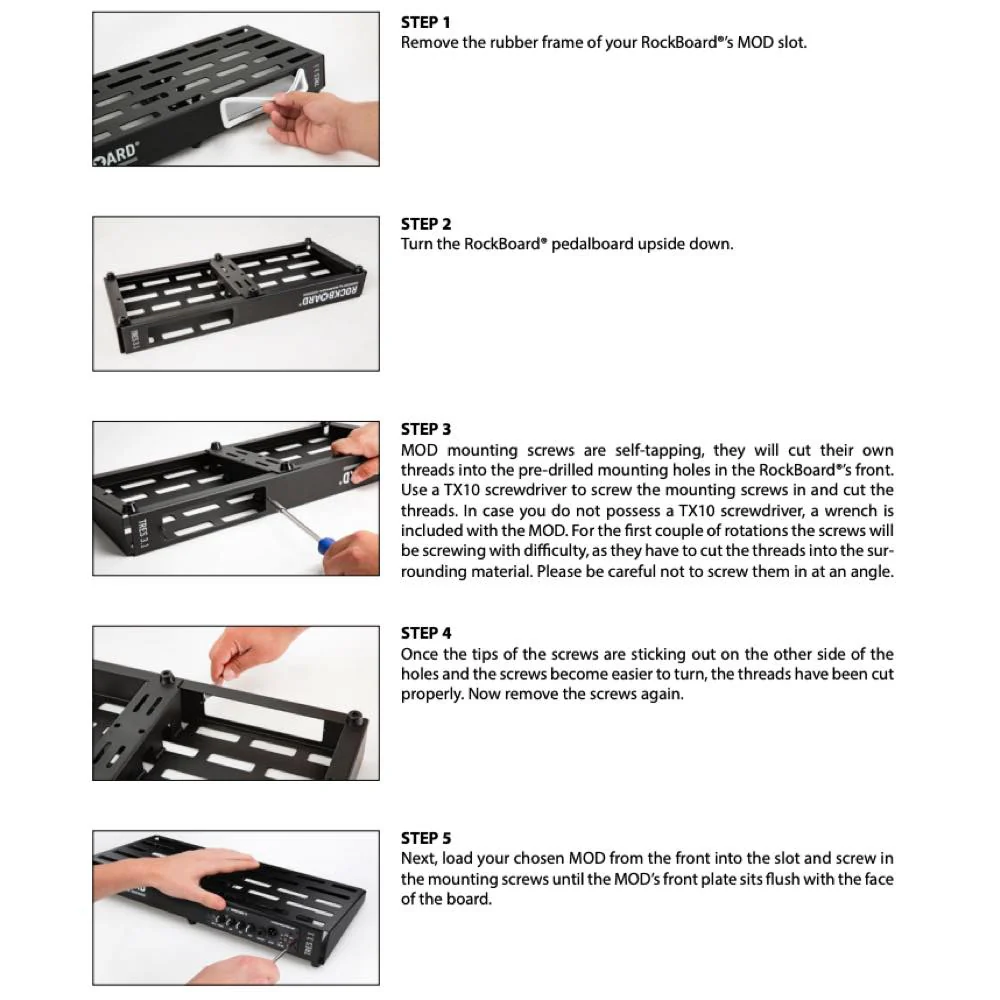

The PowerMOD 75 & 150 are specially designed Class D transistor amplifiers that can drive speaker cabinets directly from your pedalboard without an additional amplifier. The PowerMODs feature a 3-band EQ, switchable cabinet simulation for full-range speakers, and a mute function. The PowerMODs can be mounted directly into the MOD slot (available on all RockBoard® pedalboards except the DUO series) or onto pedalboards from other manufacturers, allowing for space-saving integration into any system

The combination of the compact, lightweight design, the powerful sound and the low-noise operation makes the RockBoard® PowerMODs an affordable and reliable pedalboard power amplifier for beginners, discerning musicians and experienced professionals.

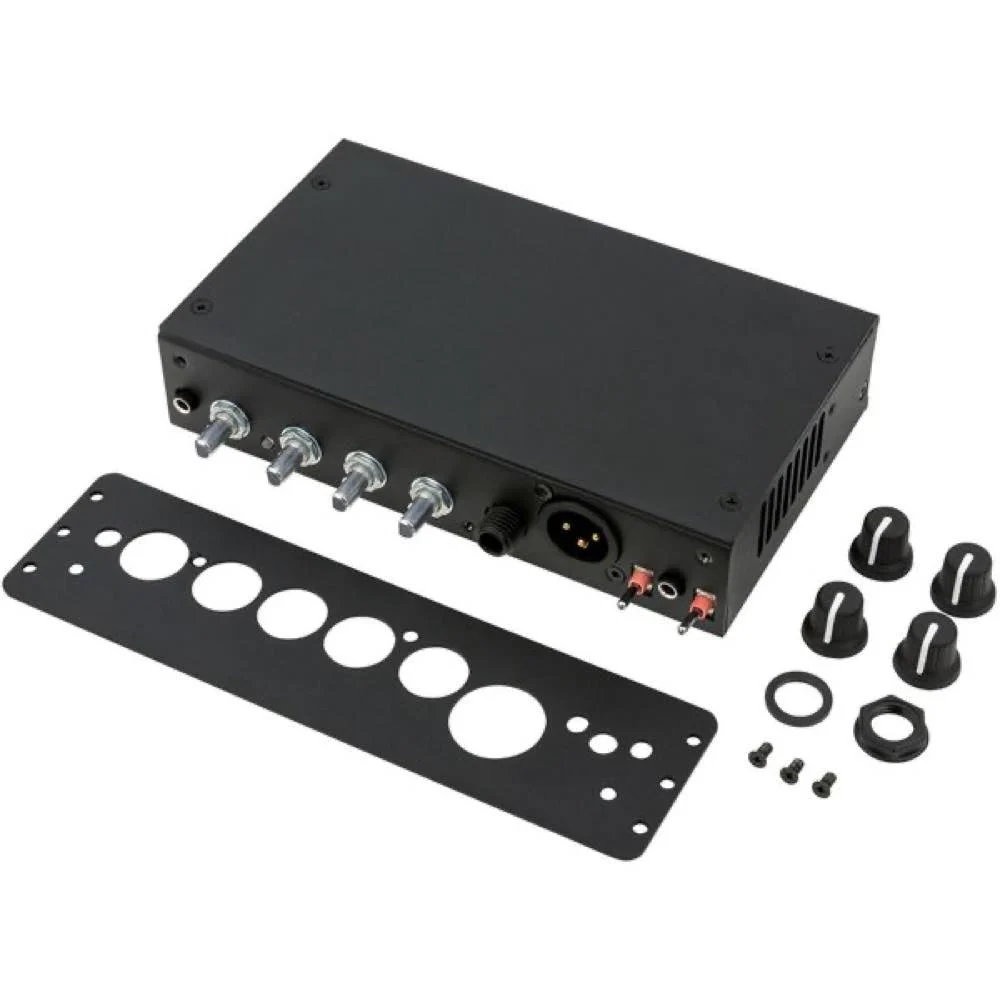

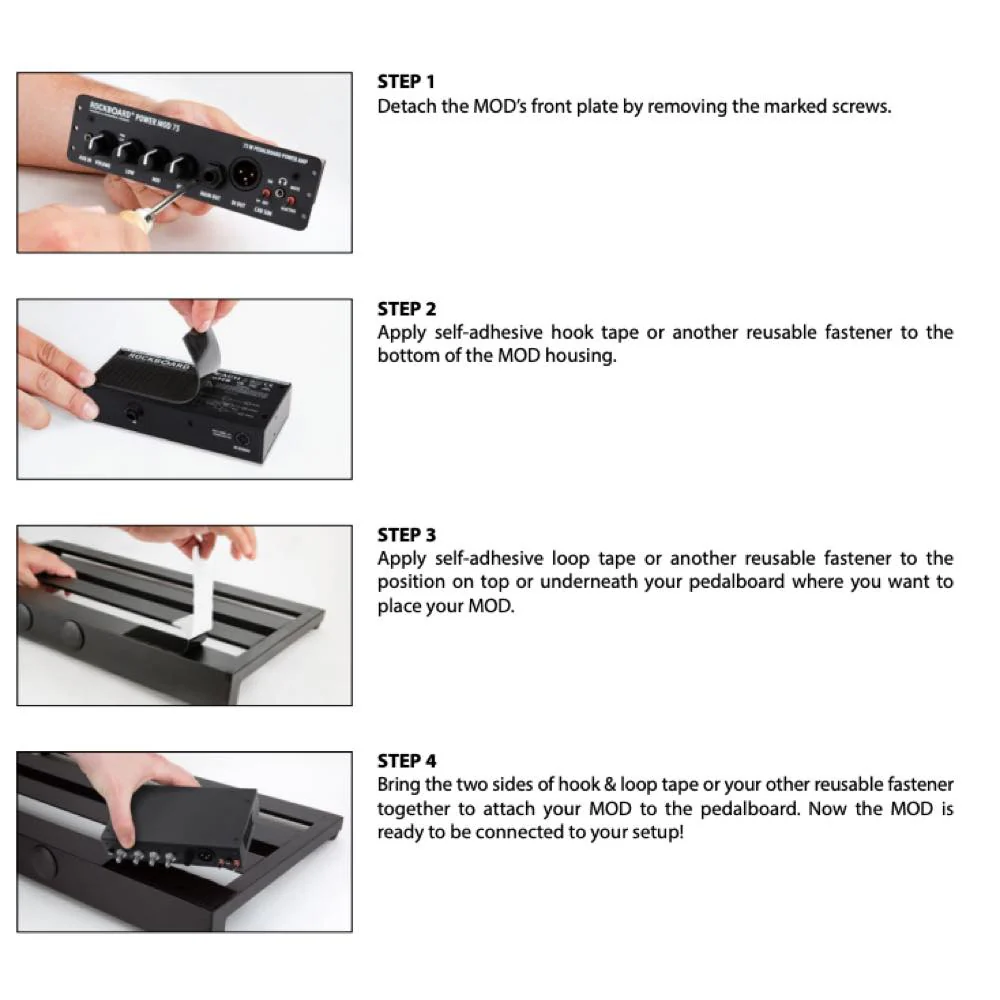

The mounting bracket can be dismantled to allow for flush mounting on a flat surface.

• compact amplifier for pedalboards
• can be directly mounted on into all RockBoard pedalboards equipped with MOD slots or on third-party pedalboards
• solid-state design, class D amplifier circuitry
• power (@1% THD): 50 W at 4 Ohm / 30 W at 8 Ohm
• 3-band EQ

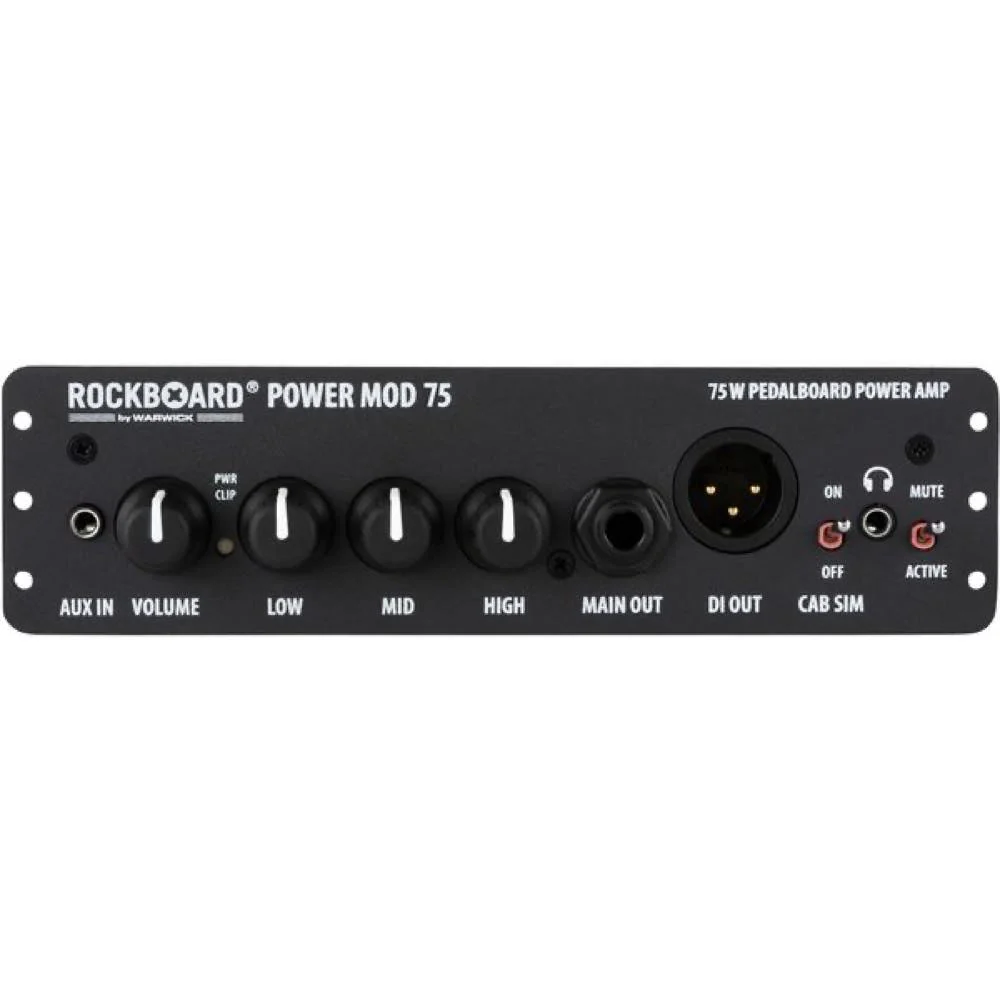

• front panel controls for Volume, Low, Mid, High
• front-mounted Cab-Sim switch
• front-mounted Mute switch
• front-mounted 6.35 mm (1/4") speaker output
• front-mounted 3.5 mm (1/8") headphone output
• front-mounted 3.5 mm (1/8") AUX IN input for external audio signals
• front-mounted balanced XLR DI output
• rear-mounted connection for included power supply adapter
• rear-mounted instrument input

• dimensions (L x W x H) 175 x 116 x 47 mm / 6.88" x 4.56" x 1.85"
• weight 0.84 kg / 1.86 lbs (including power supply)
• including 220 - 240 VAC power adapter, output 24 VDC, 2.25 A

Mini-FAQ
Does the Volume change the DI level?
No. Volume controls speaker and phones, not the DI.

Does the cab sim affect the DI?
Yes. The cab sim is pre-EQ and applies to all outputs.

Can I practice silently?
Yes. Use the headphones jack; the units can run without a speaker connected.
