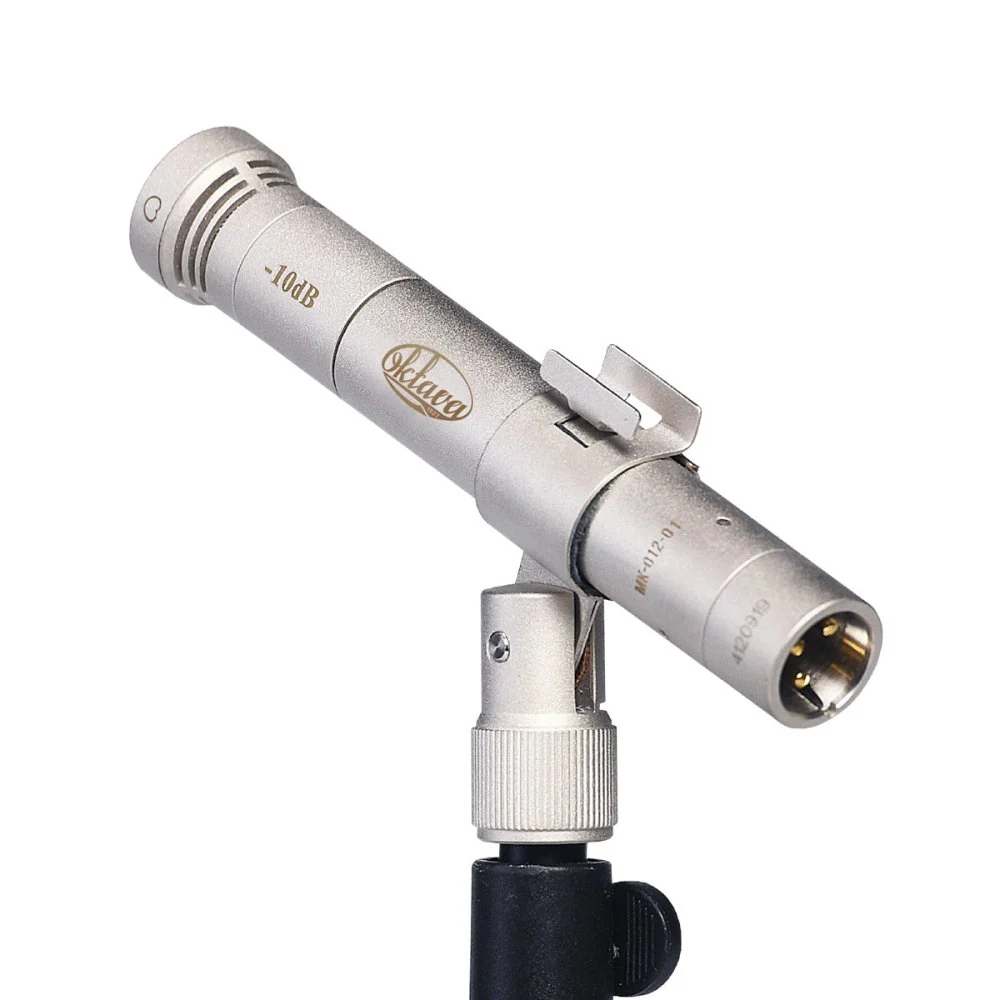

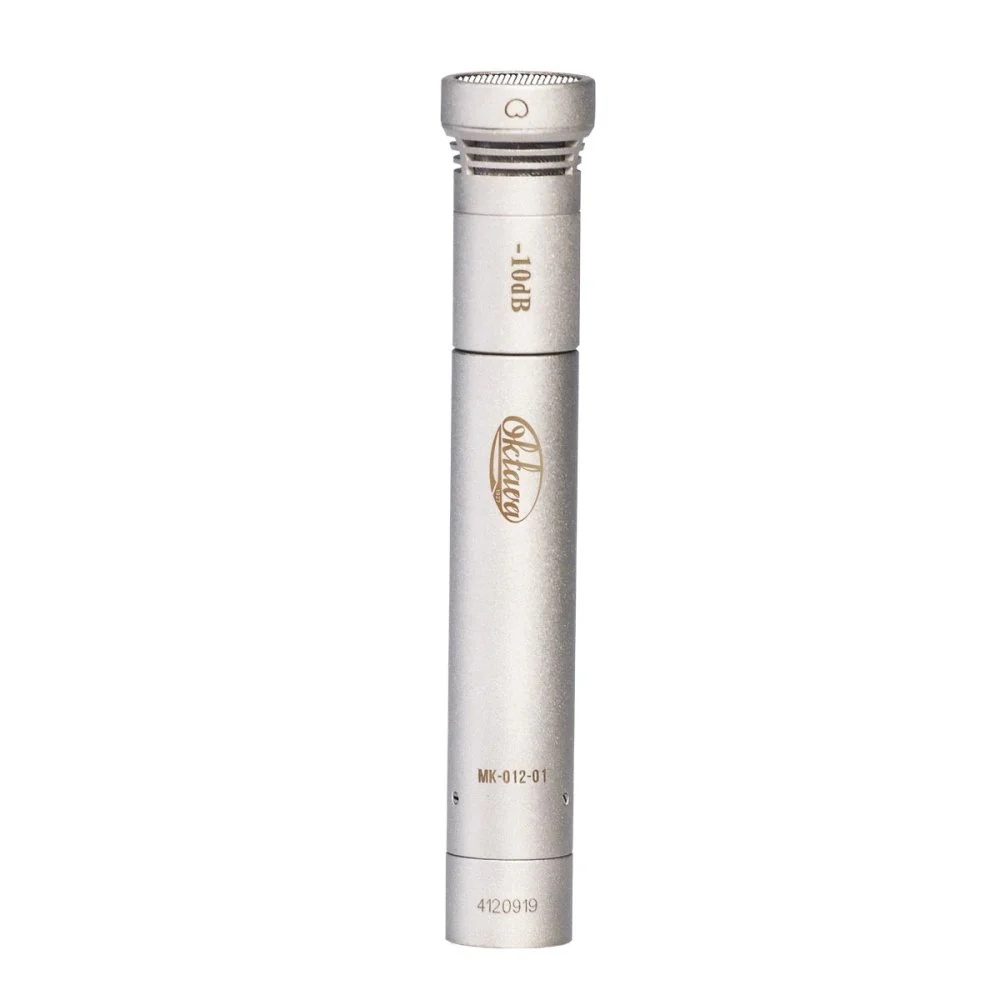

Oktava | MK-012-03 | Moldular Small Diaphragm Condenser Microphone | w/ Hyper, Cardioid & Omni Capsule | Silver
Proudly Hand-Made in Tula, Russia
The MK-012 is a compact, high quality capacitor microphone with interchangeable capsules to provide a choice of cardioid, hypercardioid or omni-directional polar patterns. The wide, flat response ensures that all sounds are captured with a high degree of accuracy.
A -10 dB pad is included for use in high SPL environments, a low-cut pad is optionally available. The capsules, which screw onto the microphone body, utilise a precision, integral connection system to ensure reliable electrical contact.
The MK-012 is suitable for use in any situation where an accurate sound is required, the small size of the system makes it ideal for use in broadcast, sound for picture, installation, sound reinforcement and theatre situations as well as the recording studio.
In pairs, the MK-012s are perfectly suited for coincident and spaced stereo miking techniques, and also overhead useage in live and studio situations.

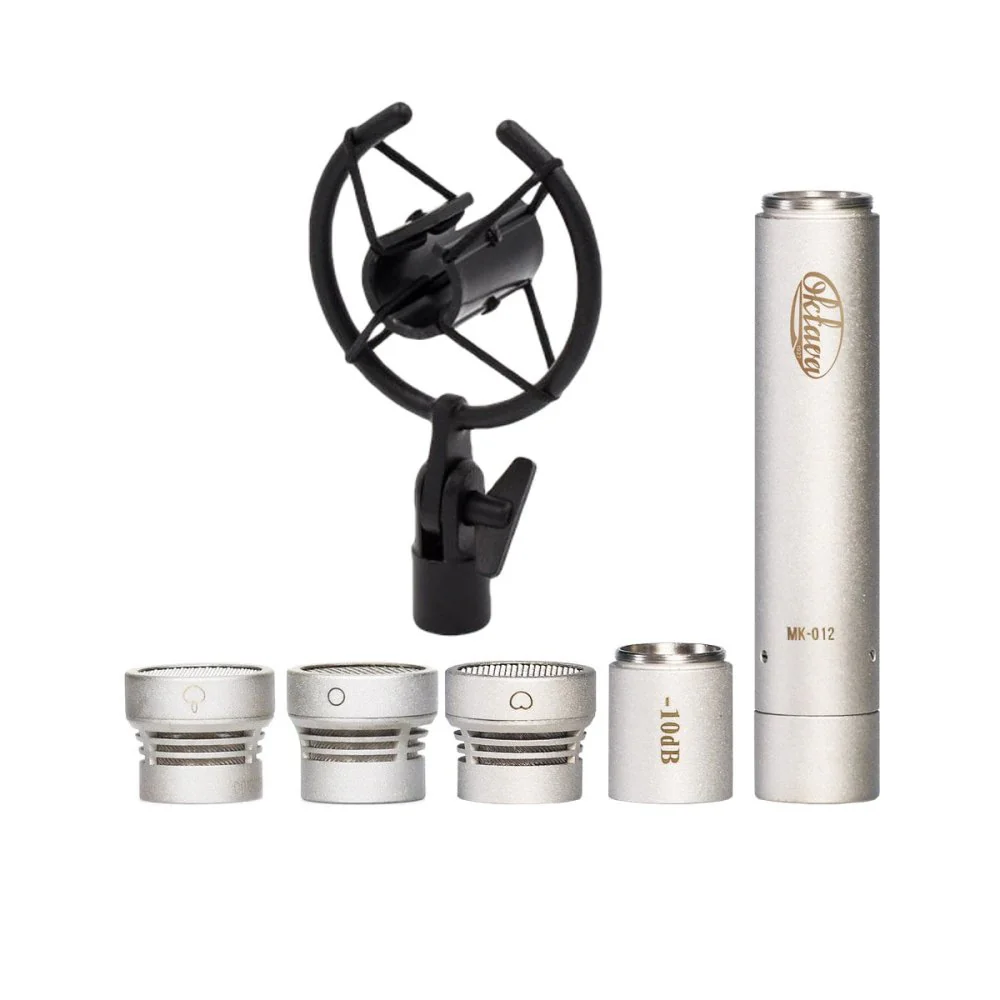

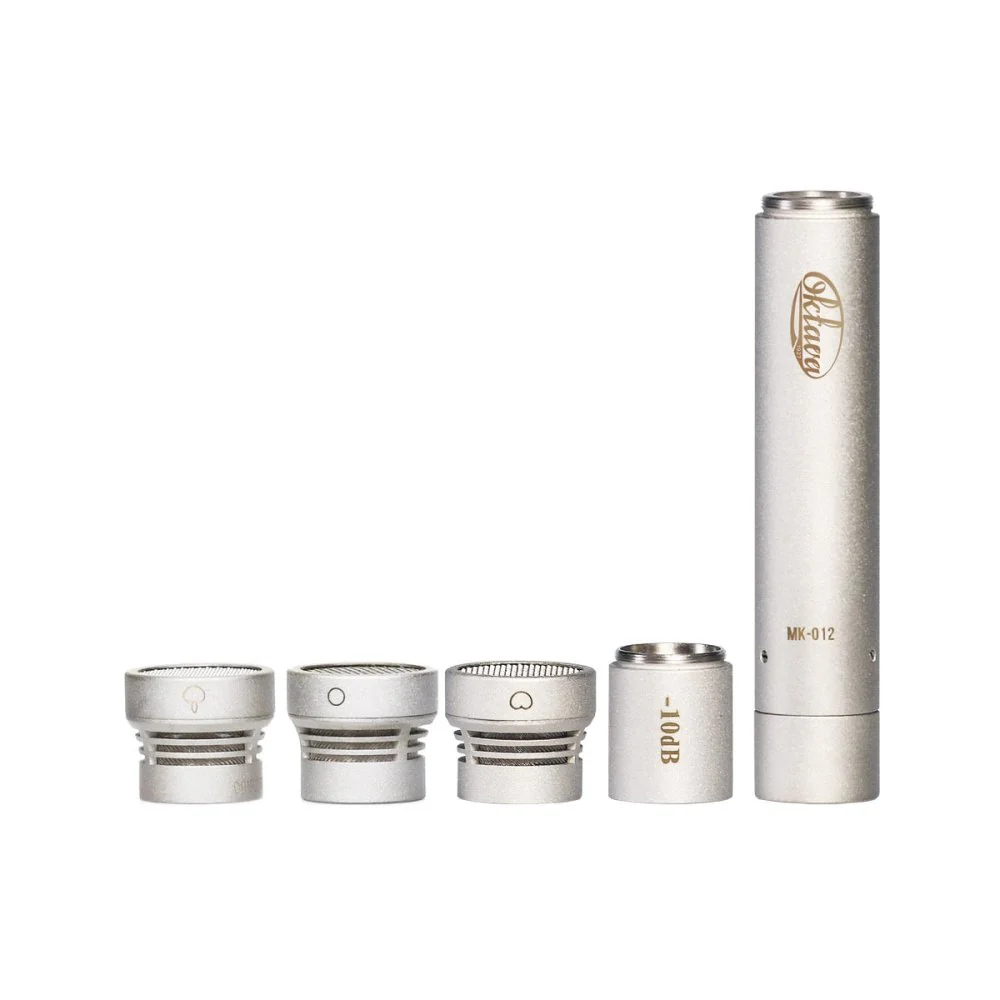

What's included,
1 x Microphone body (Preamp)
1 x Cardioid Capsule
1 x Hyper Cardioid Capsule
1 x Omni Capsule
1 x -10dB pad adapter
1 x Mic holder
(optional) Wooden Chest Box

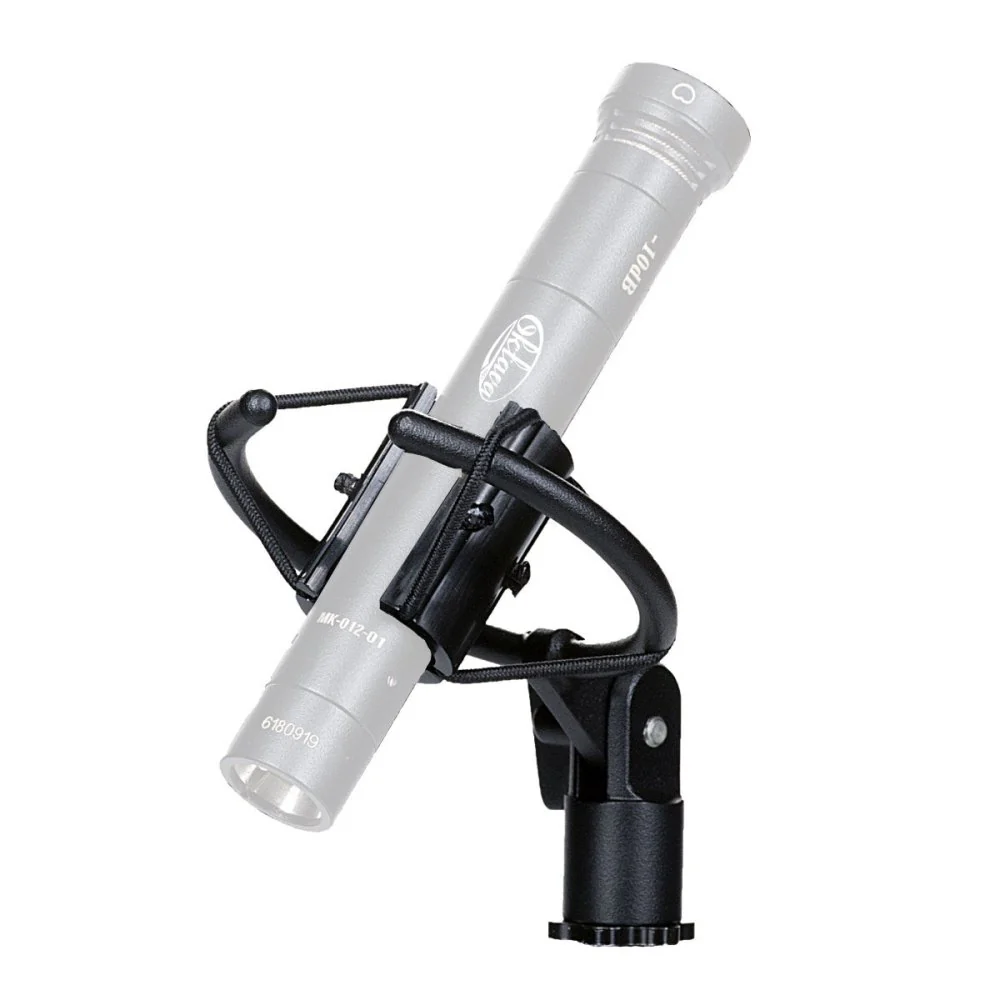

(optional) Oktava AM-20 Shock Mount (All Metal / Black)
Comes with 2 Years Australian Warranty
Tech Specs
ā¢ Frequency Range: 20 Hz ā 20 kHz
ā¢ Sensitivity: 10mV/Pa
ā¢ Equivalent noise level, A-weighted: 18 dB-A
ā¢ Rated Impedance: 150 ohms
ā¢ Rated load impedance: 1 kohms
ā¢ Max SPL (250 ā 8000 Hz with the -10dB attenuator) : 140dB
ā¢ Supply voltage: 48 V Ā± 2 V
ā¢ Matching connector: XLR 3 F
ā¢ Operating temperature: -10/+35 Ā°C
ā¢ Dimensions: ā24 x 137 mm
Oktava MK-012-01 User Manual
Oktava MK-012-01 Audio Samples
