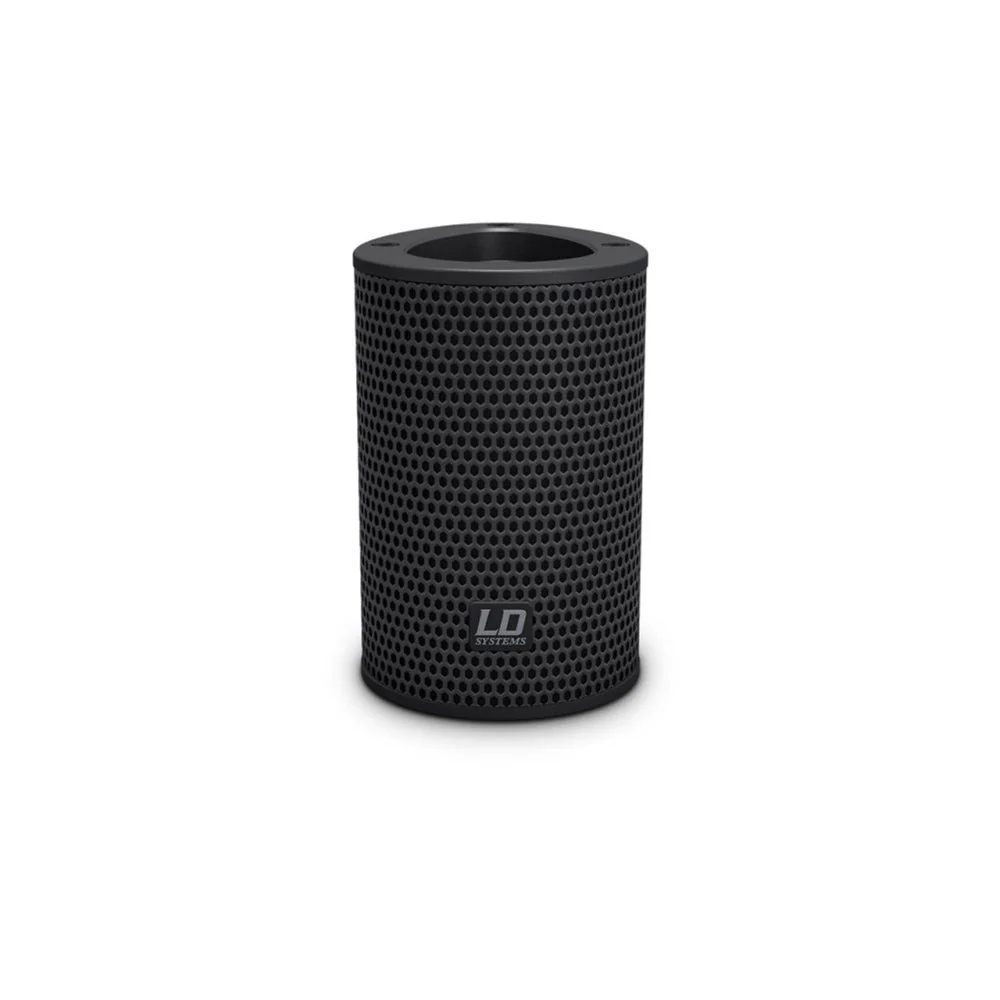

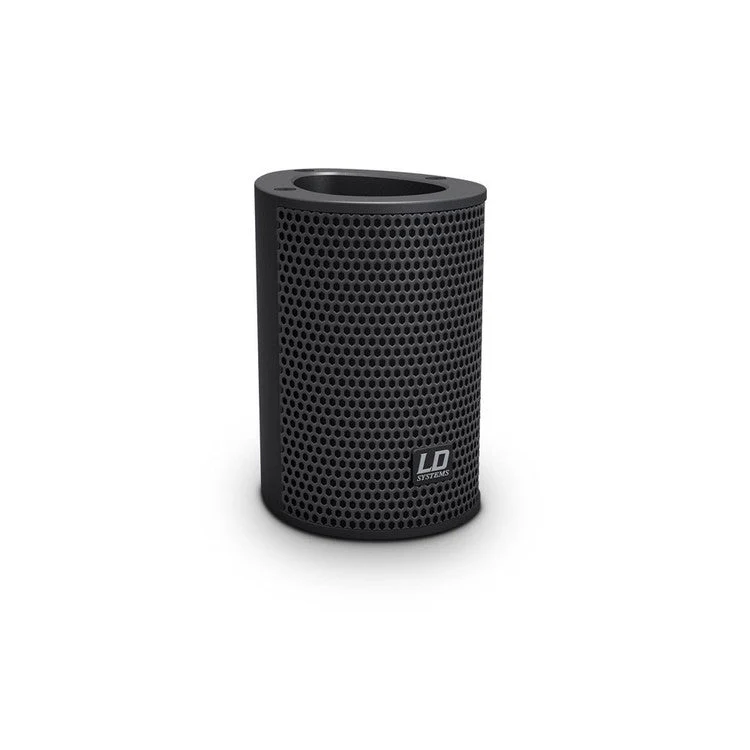

LD Systems | MAUI 5 GO | Charging Dock

This charging dock is a flexible alternative to the MAUI 5 GO’s built-in smart charger. Featuring LD Systems’ Quick-Swap technology, it lets you recharge replacement battery elements while operating the MAUI 5 GO to provide virtually unlimited battery power. Charging takes only 2 hours to 80% and 3 hours to full capacity. The dock comes with a 100V - 240V multi-voltage power supply with overload, over-voltage and over-temperature protection. MAUI 5 GO replacement batteries are available as accessories.

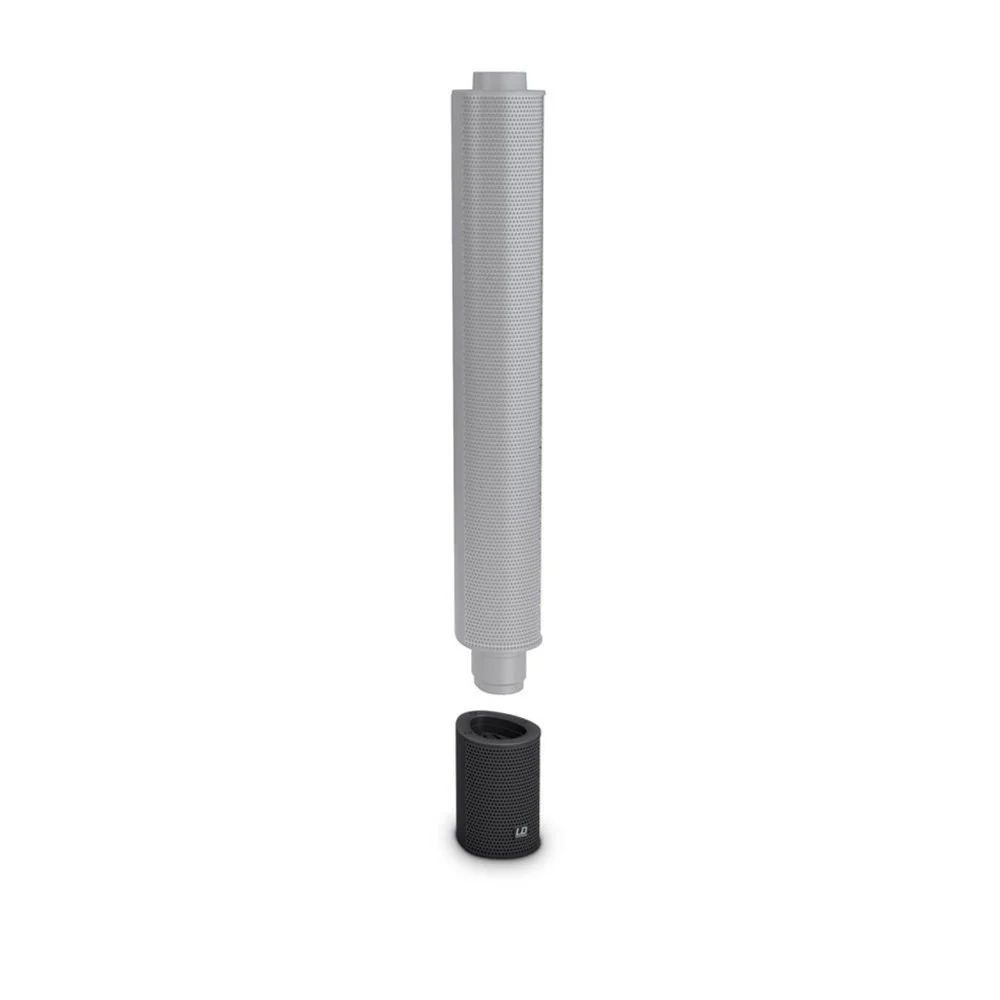

• Design matches that of the battery column
• Very short charging times: 80% capacity = 2 h, 100% capacity = 3 h
• Multi-voltage power supply included

Features

Product type	PA Power Amplifier Accessories
Type	Loading Dock with Power Cable
Connections Loading Dock	multipin
Connections Loading Dock	Low-voltage socket
Operating Voltage Loading Dock	20 - 40 V DC
Protection Features Loading Dock	current limiter
Dimensions (W x H x D) Loading Dock	81 mm x 125 mm x 106 mm
Weight Loading Dock	0.31 kg
Input Voltage Power Cable	100 V AC - 240 V AC, 50 - 60 Hz
Input Connector Power Cable	ICE Connector male
Rated Output Voltage Power Cable	24 V
Output Current Power Cable	5 A
Protection Features Power Cable	power supply overload
Protection Features Power Cable	over-current
Protection Features Power Cable	short circuit
Protection Features Power Cable	thermal overload
Indicators	power LED
Dimensions (L x W x H) Power Cable	167 mm x 67 mm x 35 mm
Weight Power Cable	0.62 kg
