LD Systems | ICOA 15 Mounting Bracket | White

The freedom to achieve the sound you want is the concept behind the ICOA and its matching U-mounting bracket as well.

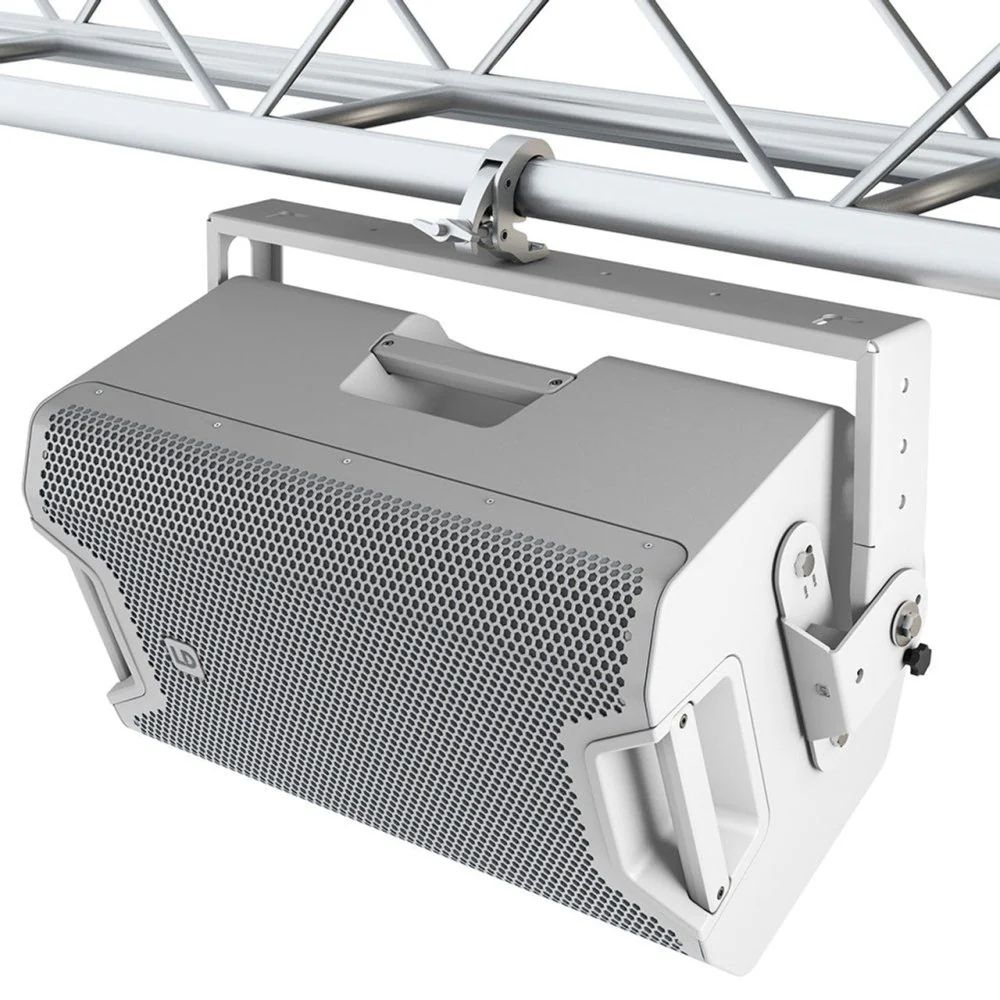

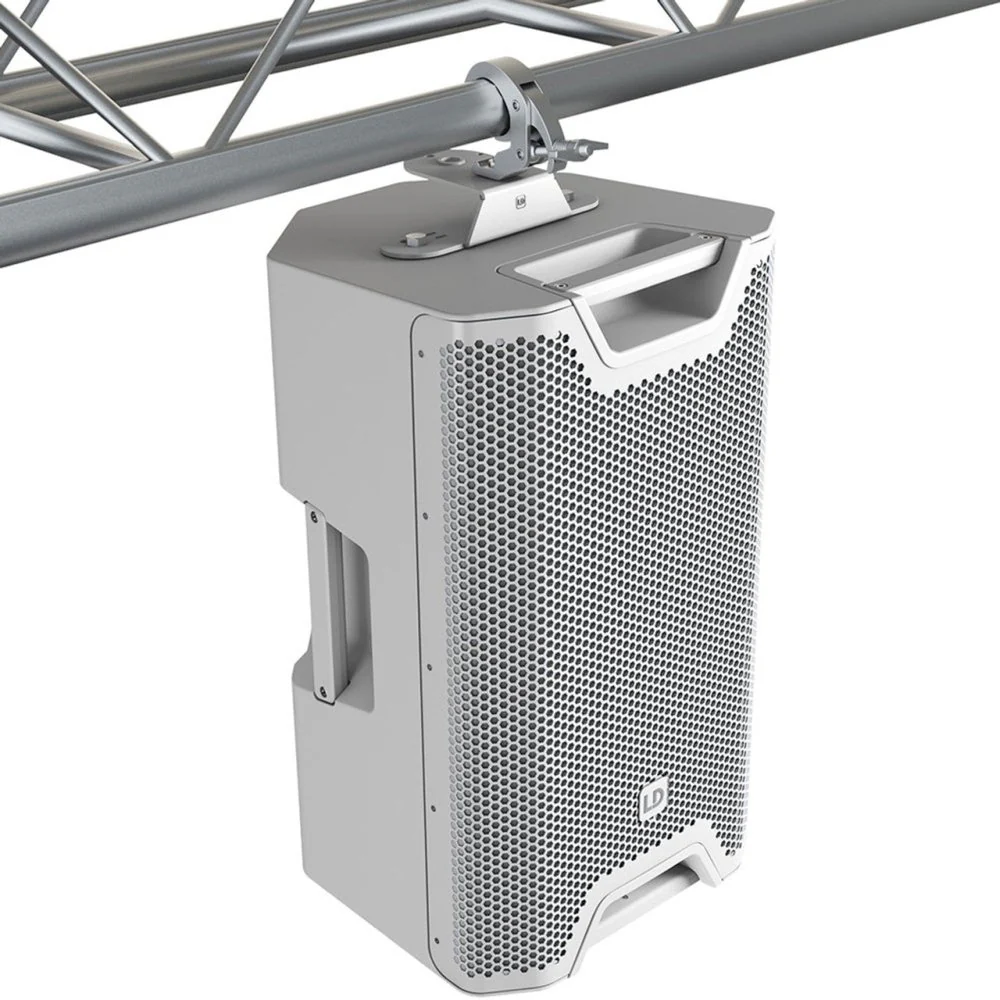

It gives you complete flexibility to mount the ICOA in different ways - to the wall, either horizontally or vertically, or to a truss using an optional clamping tool.

You can install the bracket on the wall with six screws and quickly and effortlessly "click" your ICOA into place with the Easy-Click system. All that's left to do is to fasten everything down with a safety screw.

The U-bracket's cable feedthrough behind the ICOA keeps things looking neat and tidy. Once the ICOA is installed, you can freely swivel it around in 10° increments up to 180°. Enough flexibility to find your ideal angle.

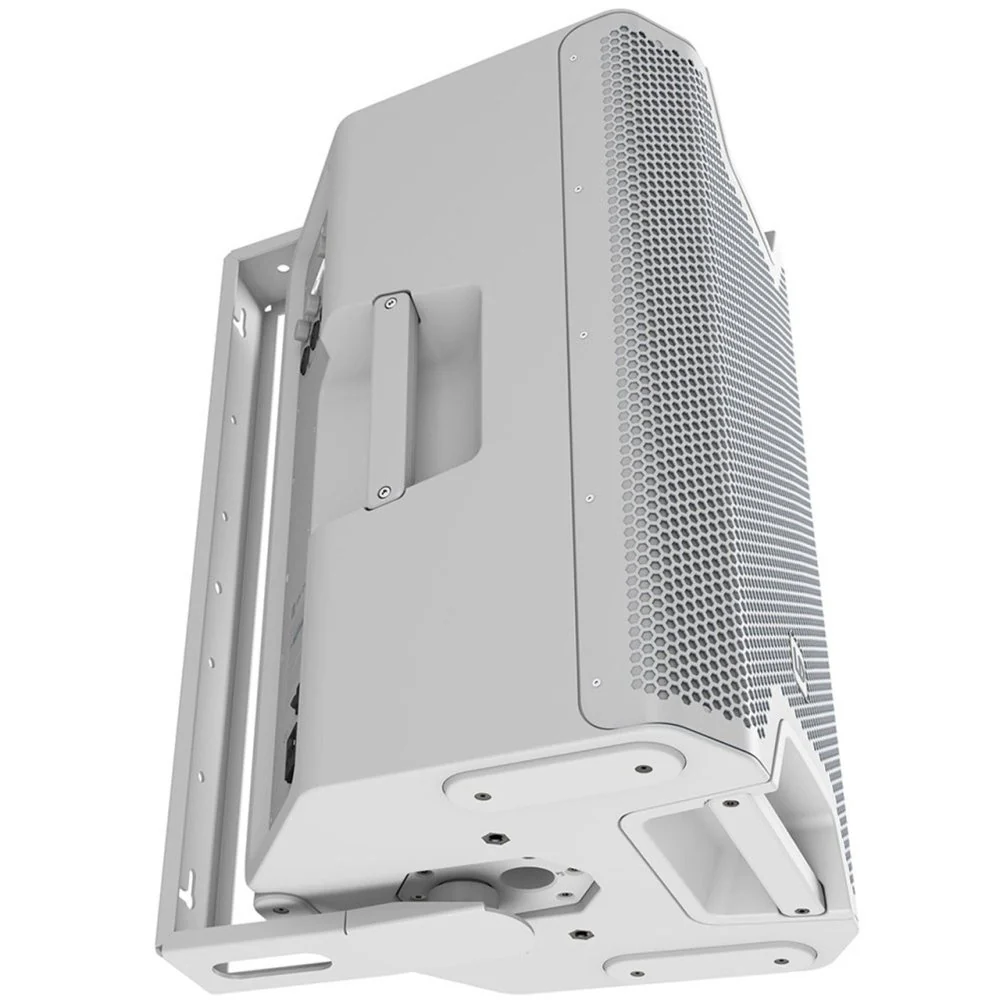

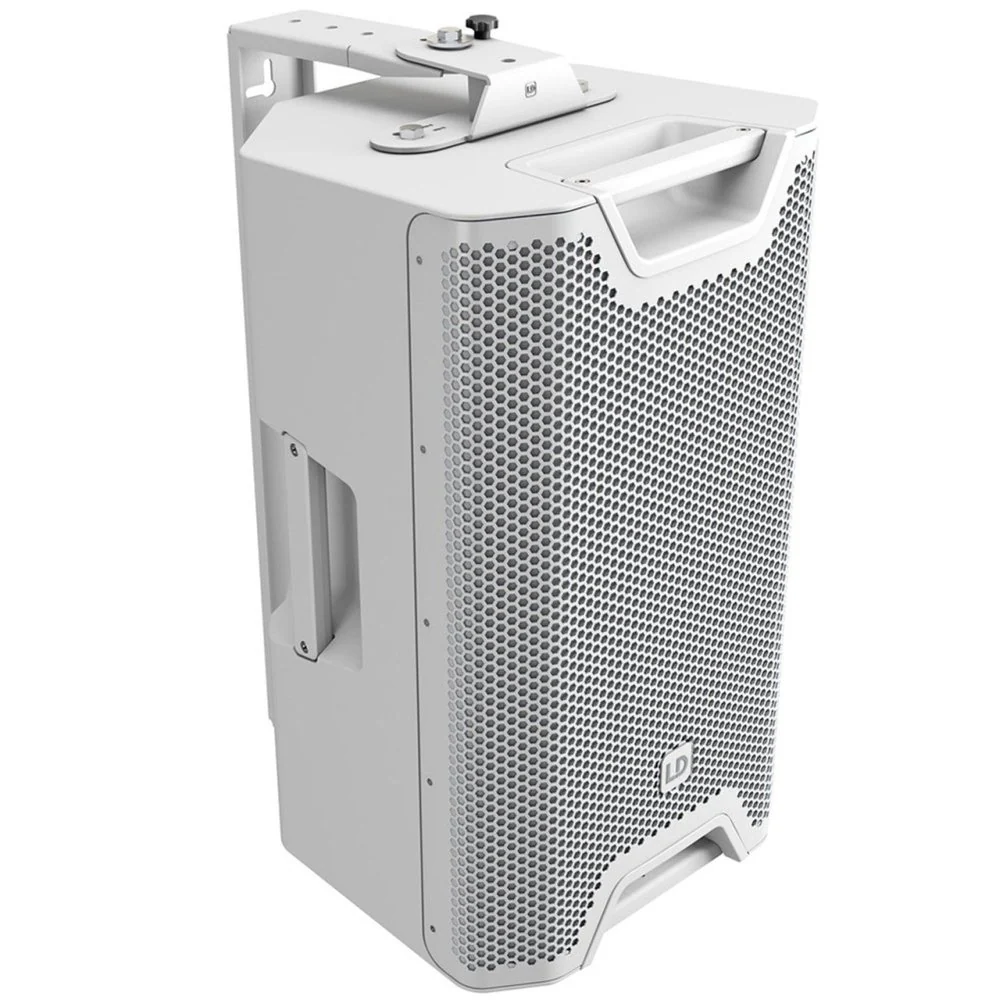

• Universal bracket for horizontal or vertical wall attachment
• Truss mounting with optionally available clamp
• Easy-Click System
• Rotatable in 10° increments up to 180° with scaling indicator
• Five holes for M10 screws
• Six holes for wall installation
• Cable feedthrough
• Load capacity up to 27 kg

Features

Product type	PA Loudspeakers Accessories
Type	Wall bracket
colour	White
Material	Steel
Surface	Powder-coated
Max. load	27 kg
Weight	4 kg
