LD Systems | HPA1 | Personal Headphone Amplifier
The LD Systems HPA 1 is a versatile headphone amplifier with high power output for stage, studio and home recording and is the perfect solution for wired in-ear-monitoring.. The compact device in a rugged, ergonomically shaped plastic housing with soft-touch surface and practical belt clip is very extensively equipped.

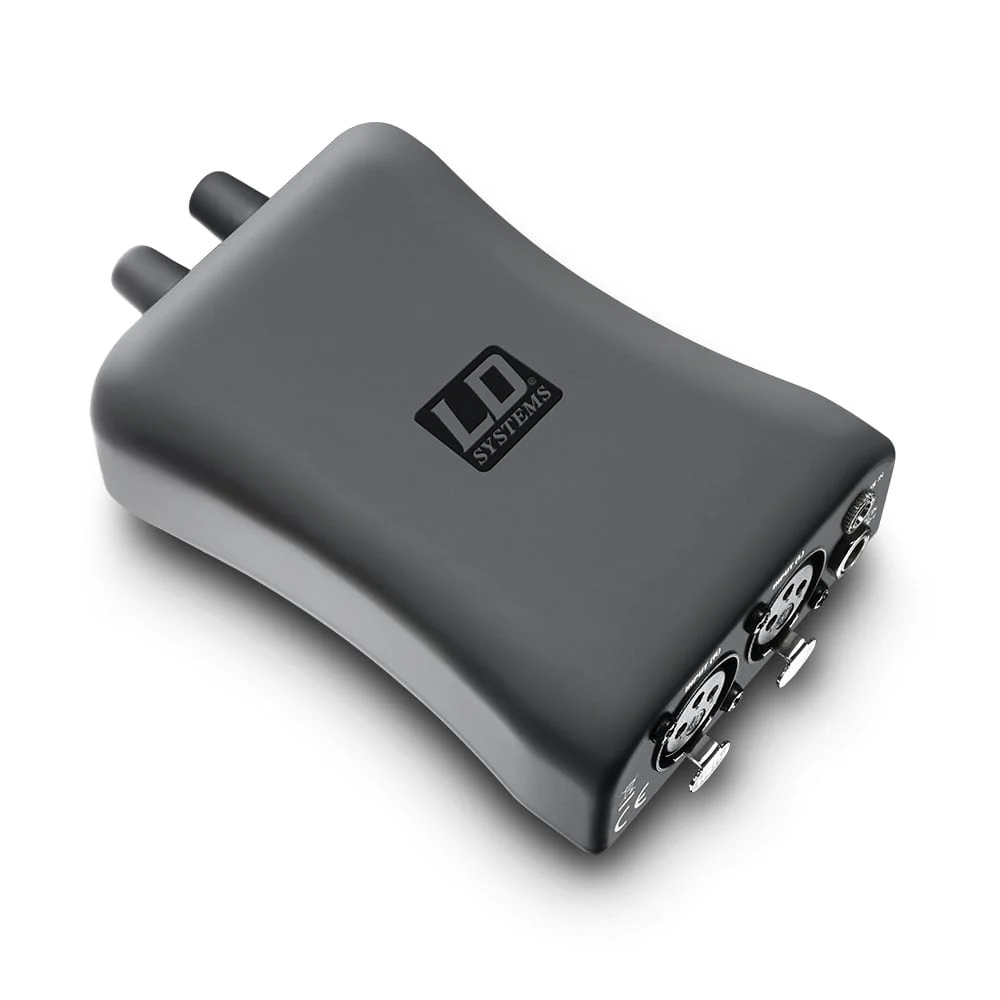

In addition to locking XLR connectors for the stereo signal L/R input, the HPA 1 has a balanced 3.5 mm stereo jack as AUX input, which can be used in parallel for clicks or playback. It is protected for safe operation against excessive input levels; a hollow pin socket with negative internal contact enables the connection of a network adapter for fixed operation.

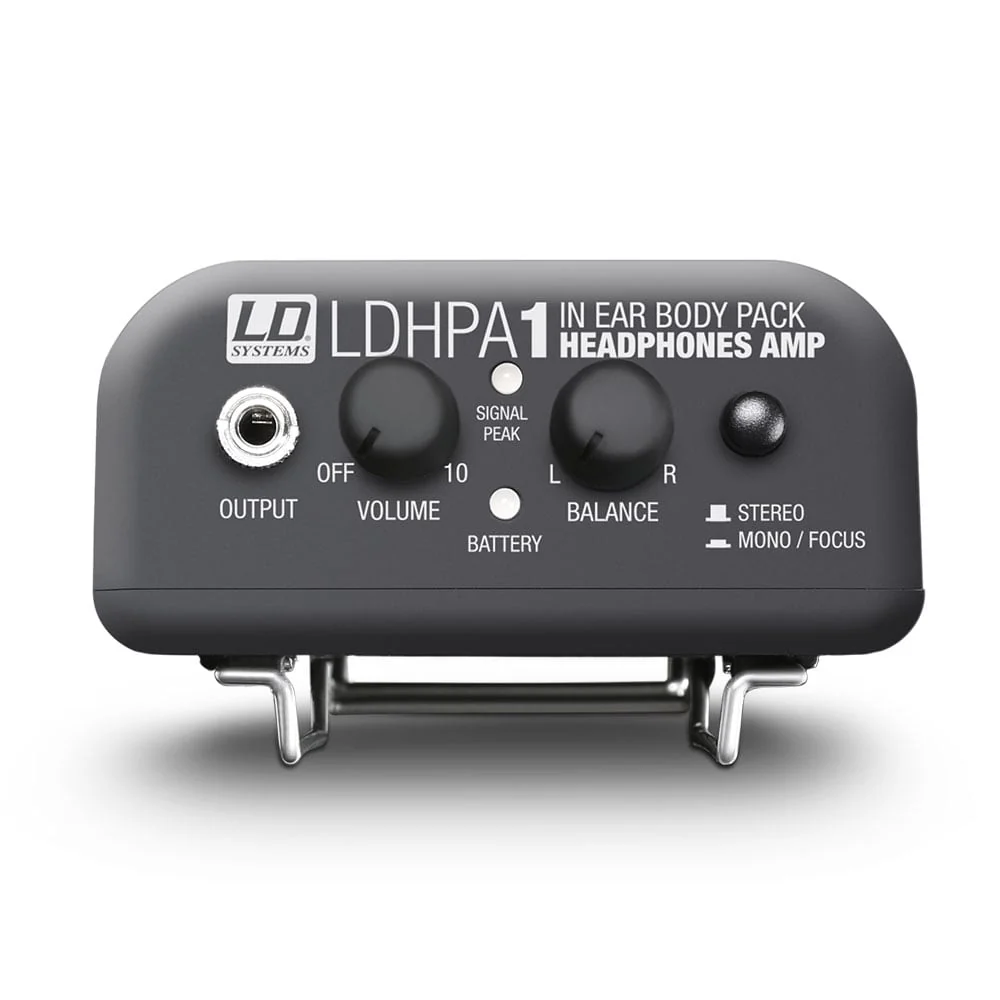

A 3.5 mm stereo jack is provided as earphone and headphone output. Volume level and balance can be set with easy-grip knobs, a push-button switches between the summed mono and stereo signals. A full-fledged limiter is integrated for distortion-free playback and as protection against feedback.

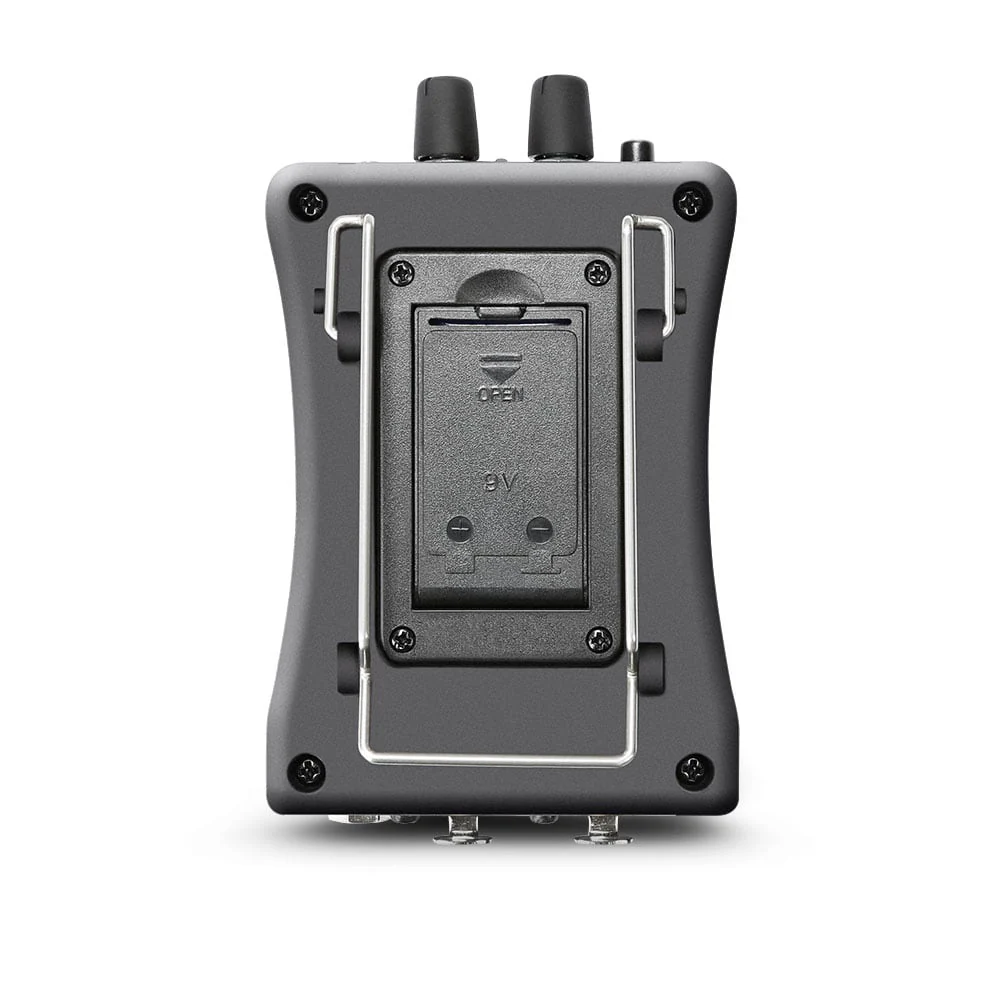

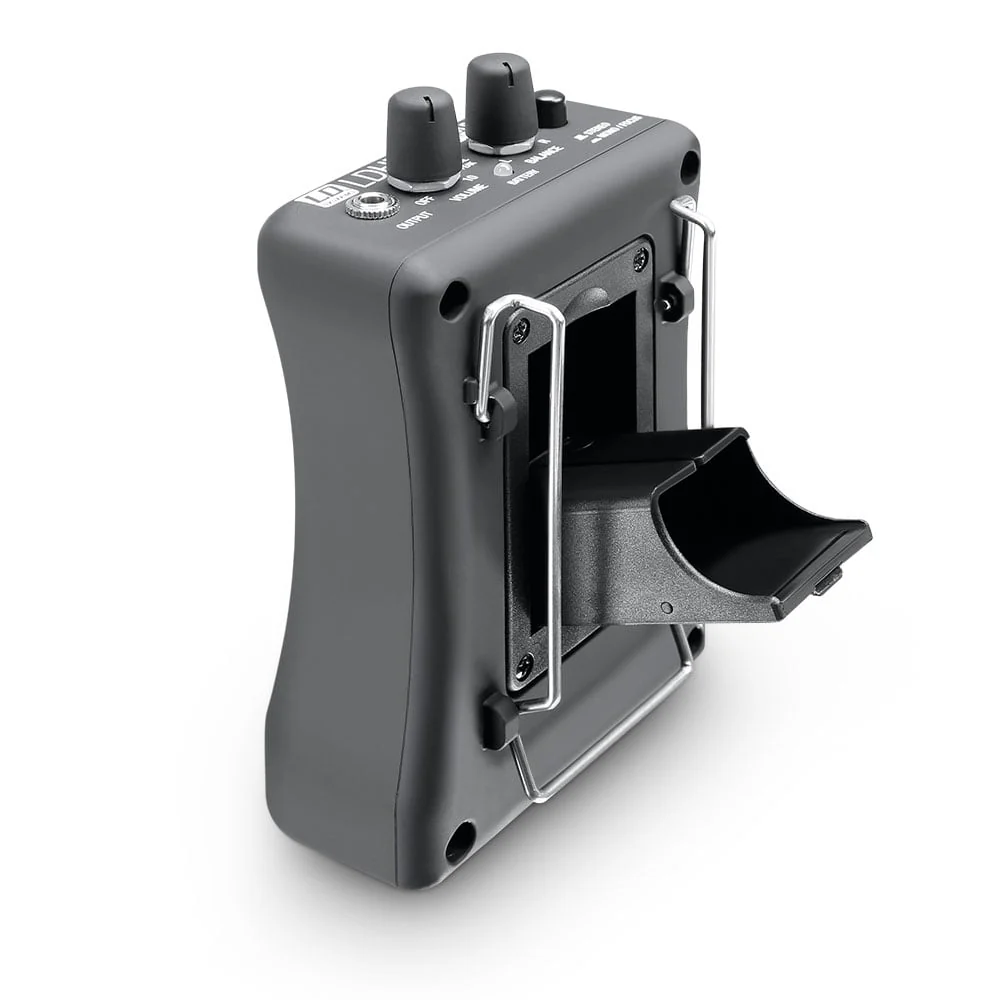

The LD Systems HPA 1 has bi-colour LEDs to facilitate the features overview, which displays the response of the limiter during peaks and the battery status. At 165 grams, the headphone amplifier is distinctly light-weight and can be operated for up to 12 hours thanks to a high quality 9 V block battery.
SPECIFICATIONS
- Compact and powerful headphone amplifier
- Also ideal for wired in-ear monitoring
- Balanced XLR inputs L/R
- 3.5 mm AUX input for click and playback
- Precise volume and balance controllers
- Built-in limiter for distortion-free playback and feedback protection
- Switchable mono sum for a focused sound
- Ultra stable housing with soft-touch surface
- Practical belt clip for direct on-body operation
- Connection for a 9 V DC adapter
TECHNICAL INFORMATION
| Product type: | Headphone Amp |
|---|---|
| Inputs: | 2, AUX In (Stereo) |
| Input connectors: | XLR-F (L + R Input, balanced), 3.5 mm stereo jack (AUX In) |
| Input impedance: | 10000 (3.5 mm jack)Ohm(s), 6000 (XLR In)Ohm(s) |
| Input sensitivity: | -6 (3.5 mm jack) dBV, 3 (XLR In)dBu |
| Max. input level: | 7 (3.5 mm jack) dBV, 16 (XLR In)dBu |
| Protection circuits: | Audio Limiter, Max. Input leveling, Power OFF – Mute relay |
| Headphones ouputs: | 1 |
| Headphones outputs: | 3.5 mm TRS |
| Power Output (1% THD @ 33 Ohm Load): | 2 x 1,65 Vrms |
| Minimum connected impedance: | 16 (per channel)Ohm(s) |
| Frequency response: | 20 – 40000Hz |
| THD: | 0.04% |
| Controls: | Balance L/R, Power / Volume, Stereo/Mono (Focus) switch |
| Indicators: | Power LED (Power ON: green), Signal (green), Battery (low battery: red), Peak (Amber) |
| Operating voltage: | 9 V block, 9 V DC power supply, 9 V DC |
| Current draw: | Nom. 0.07 A / Max. 0.15A |
| Cabinet material: | plastic |
| Cabinet surface: | Soft-touch |
| Cabinet colour: | Black |
| Width: | 80 x 42.5 x 133 mm |
| Weight: | 0.155kg |
