LD Systems | DAVE 8 XS | Compact Active PA System | Black

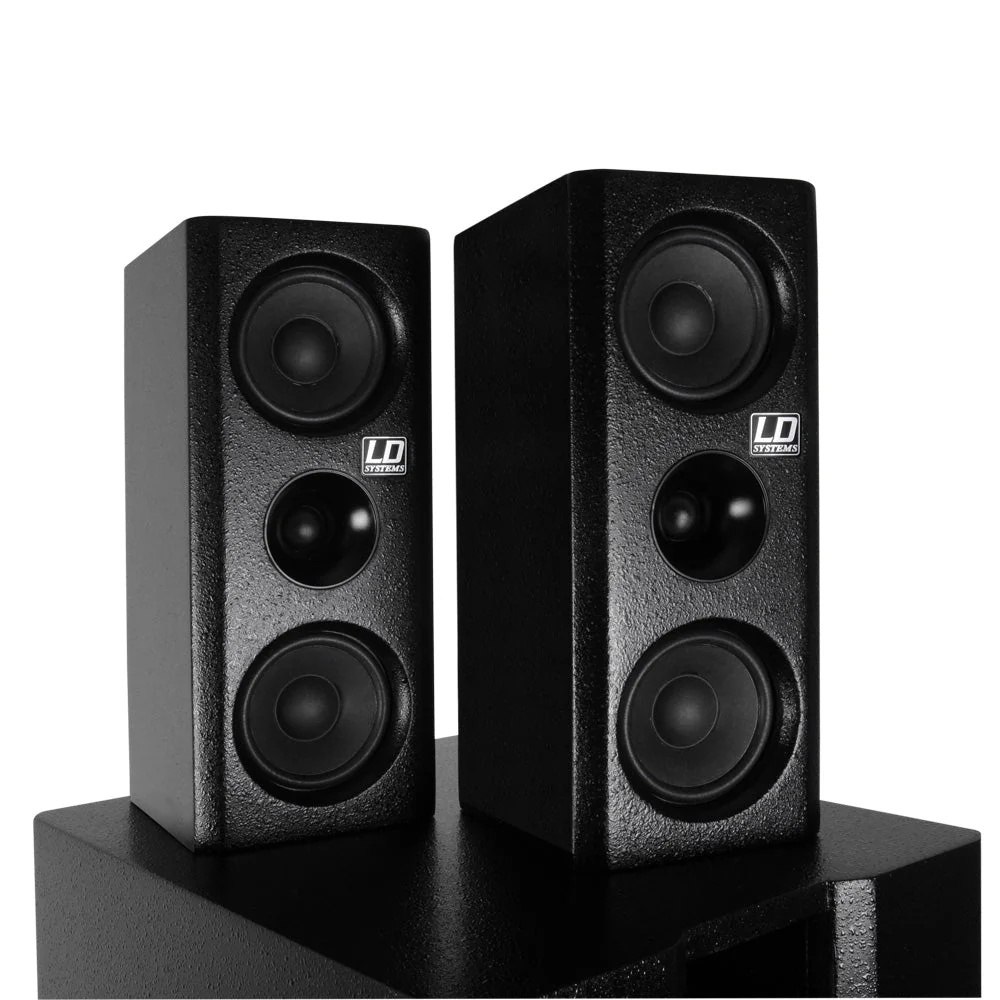

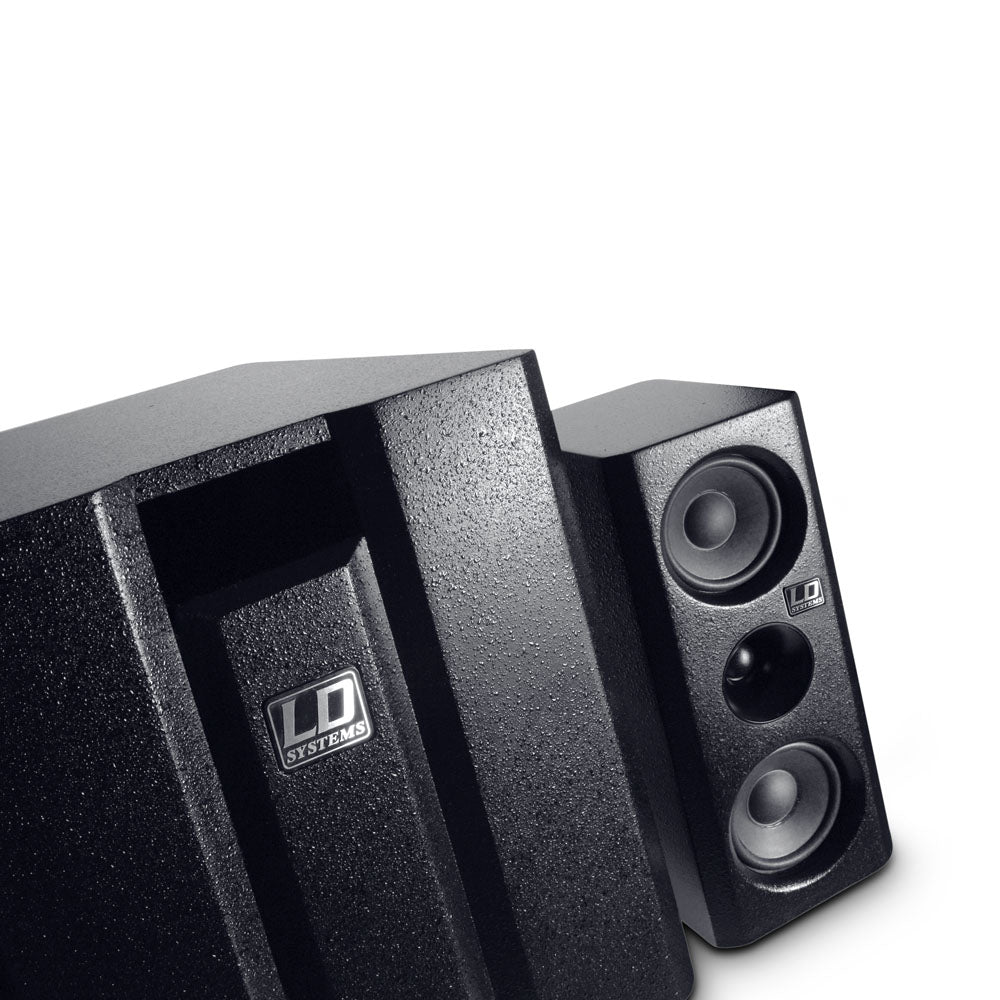

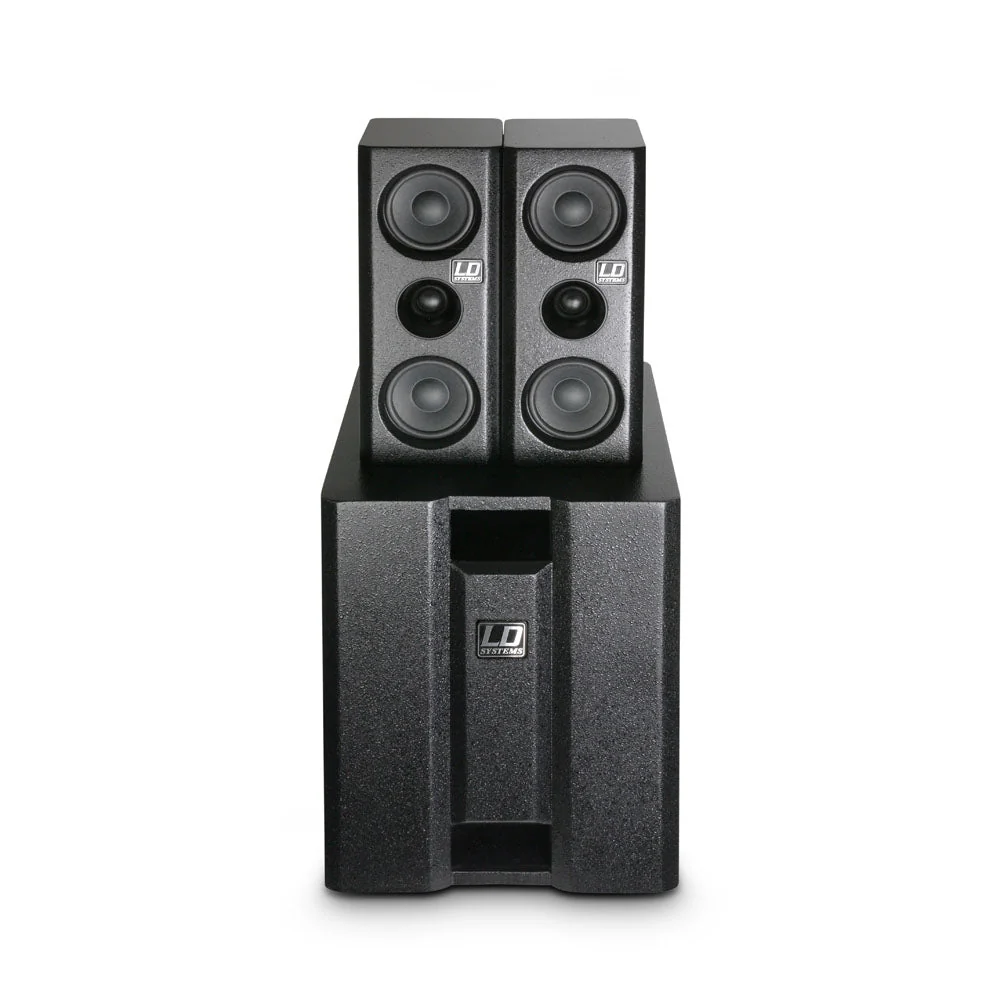

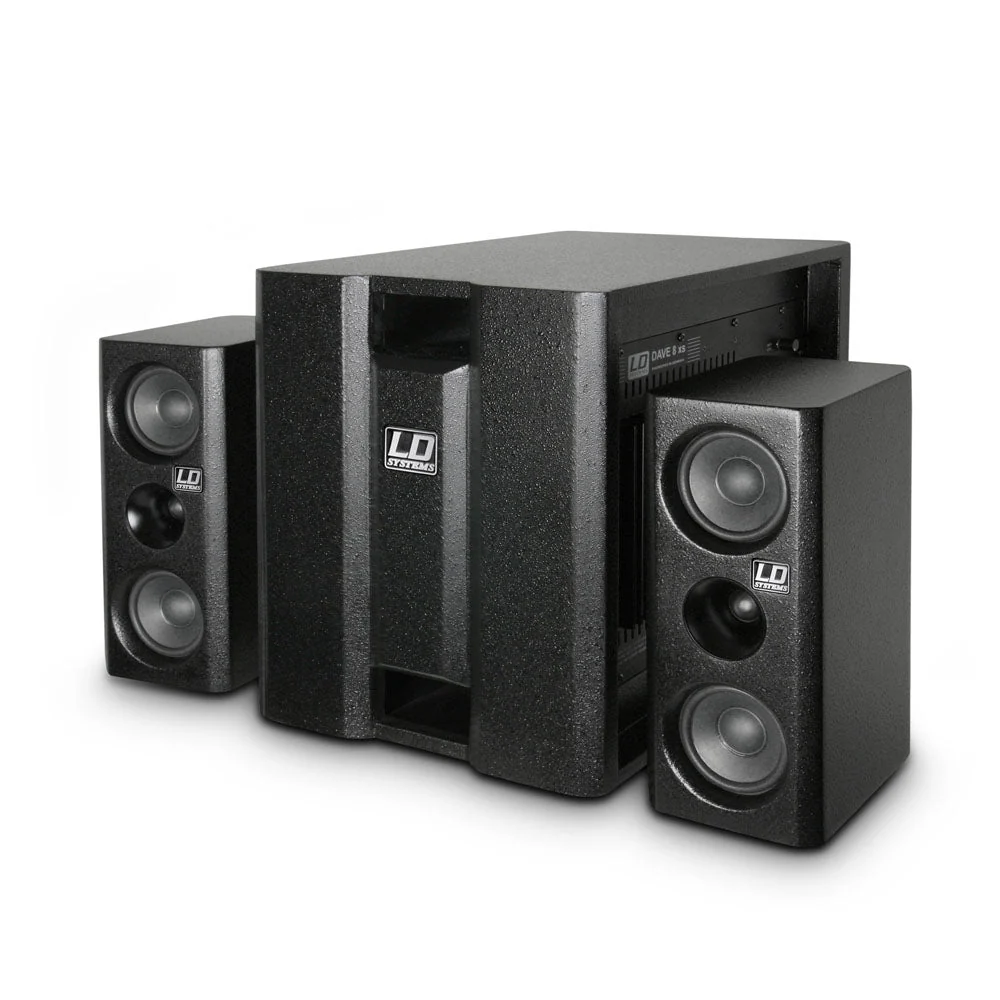

The new LD Systems DAVE 8XS is a portable 2.1 multimedia system with a high-performance 8" band pass subwoofer and two satellites (each 4" + 1", with silk dome).
The system provides crystal-clear sound and was specifically designed for multimedia applications such as home PA or gaming; it is also suitable as a monitor for DJs or keyboardists or as a music system for smaller venues such as bars and cafĆ©s. The high-performance A/B amplifier built into the subwoofer provides for both the subwoofer and the satellites. The multimedia system LD DAVE 8XS has line inputs in XLR and RCA format and is equipped with all standard protections. The built-in limiter keeps the system safe from overload and ensures a long service life. On the side of the subwoofer, in addition to an ON/OFF switch and a phase reverse switch (180Ā°), there is a separate subwoofer volume knob that allows you to find the perfect mix of brilliant treble, punchy mids, and powerful bass.
From serial number 130818000001, the satellite speakers are equipped with a 16 mm flange and are therefore compatible with the speaker stands from LDDAVE8SET2.
Features
| Weight | 29 kg |
| Product type | PA Complete Systems |
| colour | Black |
| Max. SPL (continuous) | 117 dB |
| Frequency response | 45 - 19.000 |
| Dispersion (H x V) | 60 x 60 Ā° |
Subwoofer
| Low/mid Woofer dimensions | 8 " |
| Woofer dimensions (mm) | 203.2 mm |
| Woofer magnet | Ferrite |
| Woofer brand | Custom-made |
| Cabinet construction | Bandpass |
| Cabinet material | 15 mm MDF |
| Cabinet surface | texture paint |
| Subwoofer width | 352 mm |
| Subwoofer height | 430 mm |
| Subwoofer depth | 434 mm |

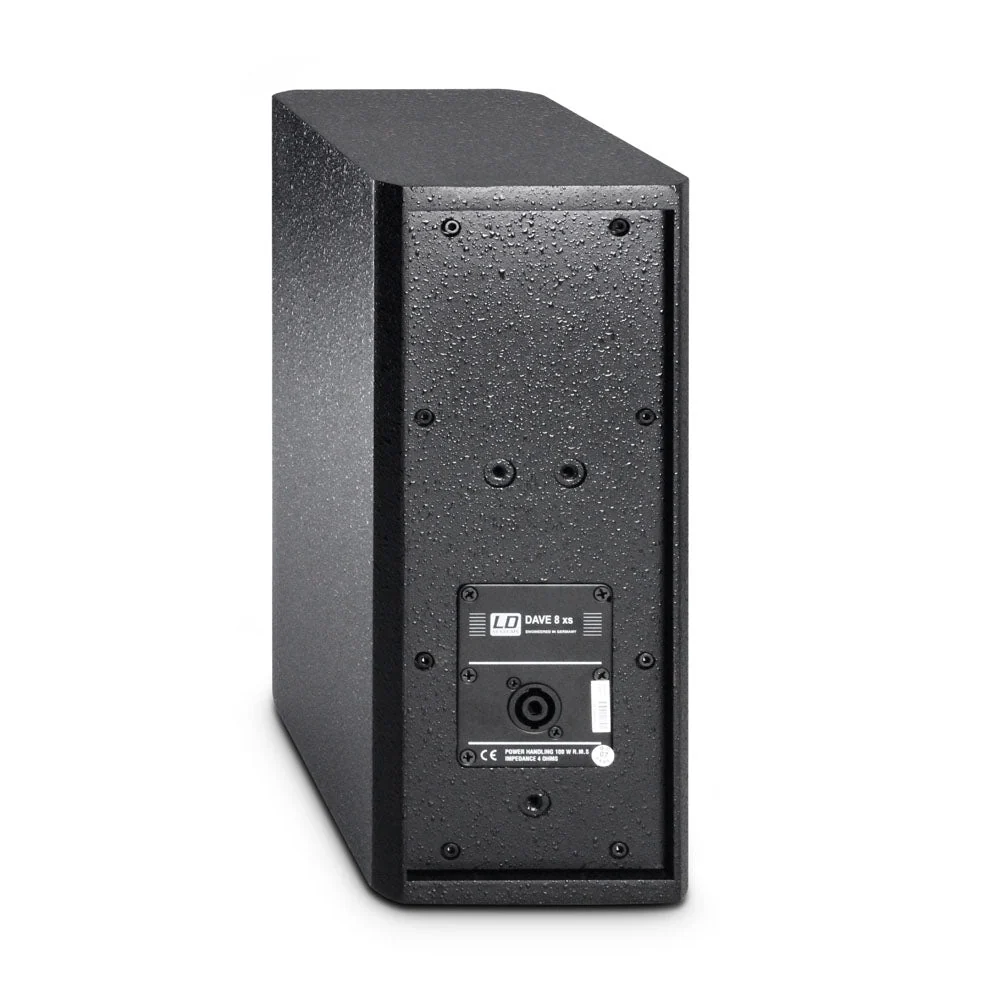

Mid/Hi System
| Midrange dimensions | 2 x 4 " |
| Midrange dimensions (mm) | 2 x 101.6 mm |
| Midrange magnet | Ferrite |
| Midrange brand | Custom-made |
| Tweeter dimensions | 1 " |
| Tweeter dimensions (mm) | 25.4 mm |
| Tweeter magnet | Ferrite |
| Tweeter brand | Custom-made |
| Mid/Hi system impedance | 4 Ohm(s) |
| Loudspeaker inputs | 1 |
| Speaker input connections | Speakon compatible |
| Cabinet construction mid/high | Closed |
| Mid/Hi system cabinet material | 12 mm MDF |
| Mid/Hi system cabinet surface | texture paint |
| Mid/Hi system width | 144 mm |
| Mid/Hi system height | 350 mm |
| Mid/Hi system depth | 170 mm |

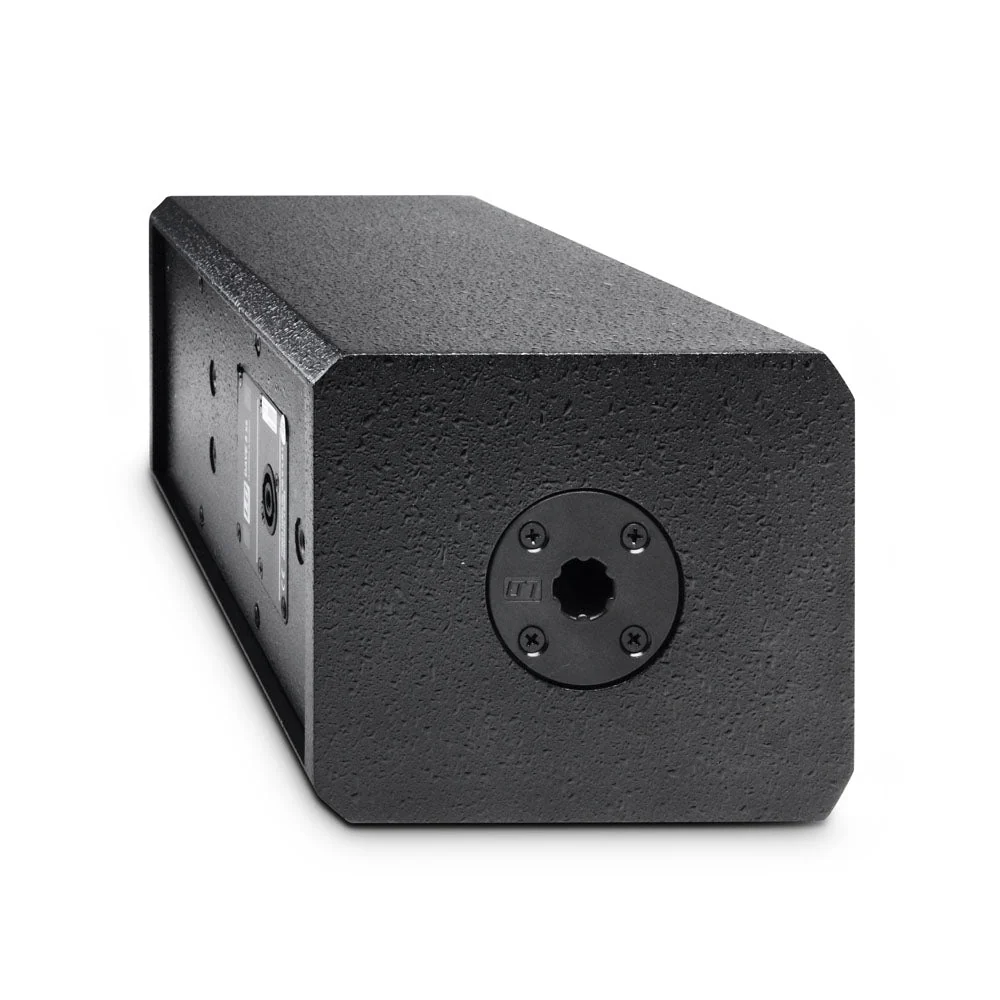

| Mid/Hi system features | 16 mm flange |

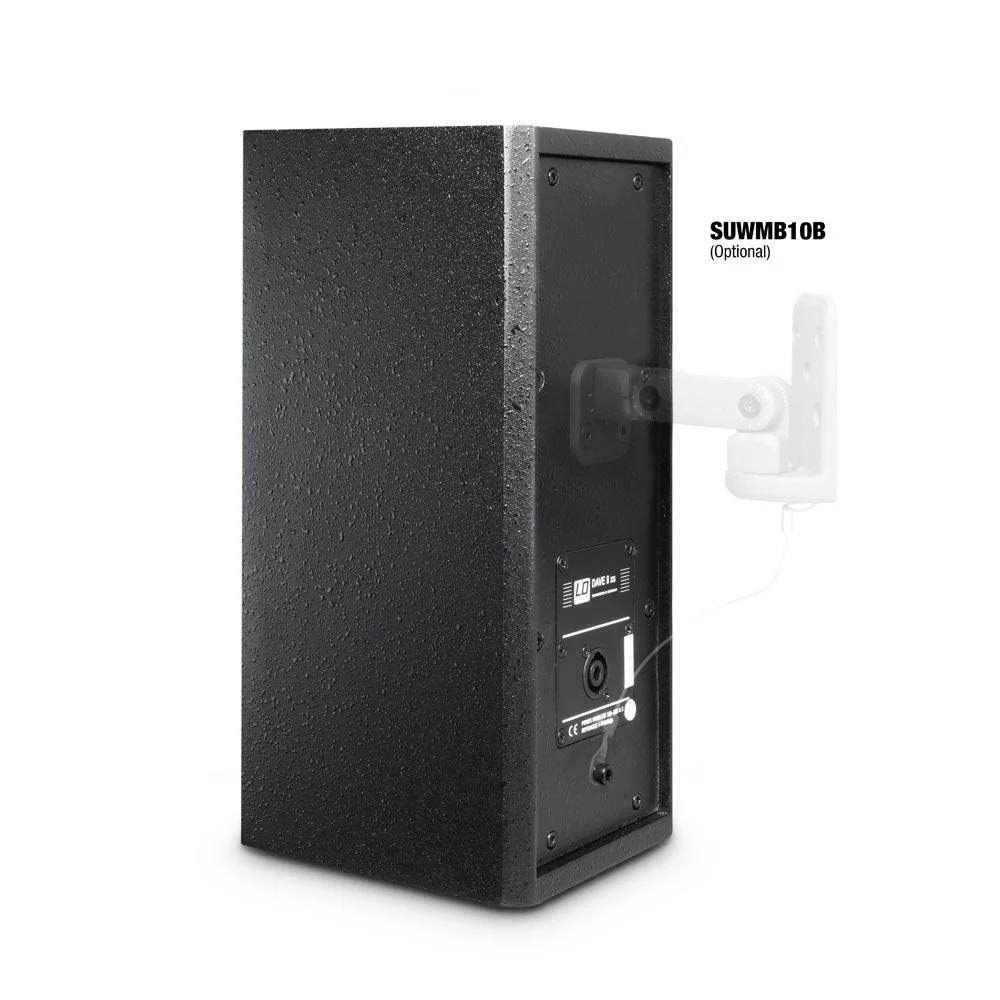

| Mid/Hi system features | 2 x M6 mounting points for wall mounting |

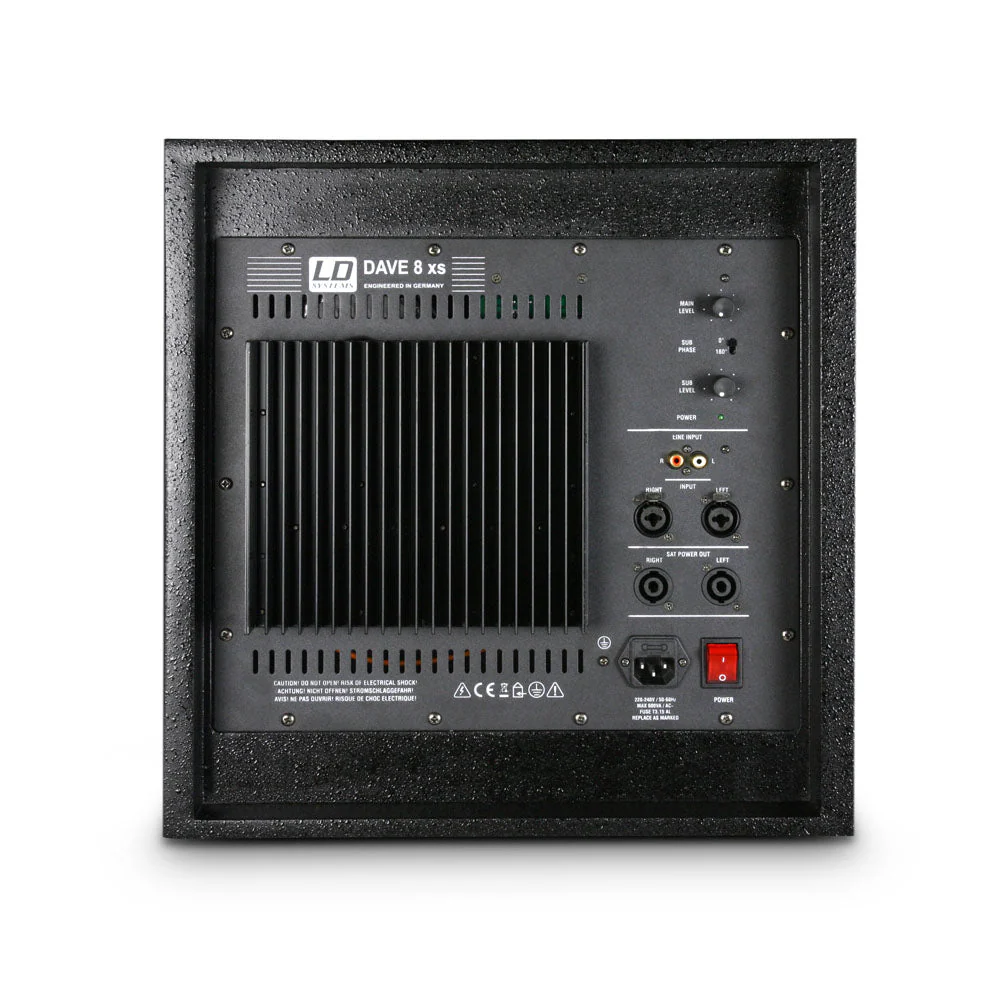

Amplifier module (integrated in subwoofer)
| Amplifier | Class A/B (Bi-amp) |
| Amplifier output system (RMS) | 350 W |
| Amplifier output system (peak) | 1400 W |
| Protection circuits | overload |
| Protection circuits | short circuit |
| Protection circuits | limiter |
| Cooling | Aluminium heat sink |
| Controls | mains switch (on/off) |
| Controls | Subwoofer Volume |
| Controls | Subwoofer Phase Reverse |
| Controls | volume |
| Indicators | Power |
| Power supply | transformer |
| Operating voltage | 220 V AC - 240 V AC, 50-60 Hz |
| Line inputs | 2 (Left/Right) |
| Line input connectors | RCA |
| Line input connectors | XLR |
| Line input connectors | 6.3 mm jack |
| Loudspeaker outputs | 2 (Left/Right) |
| Speaker output connections | Speakon compatible |
