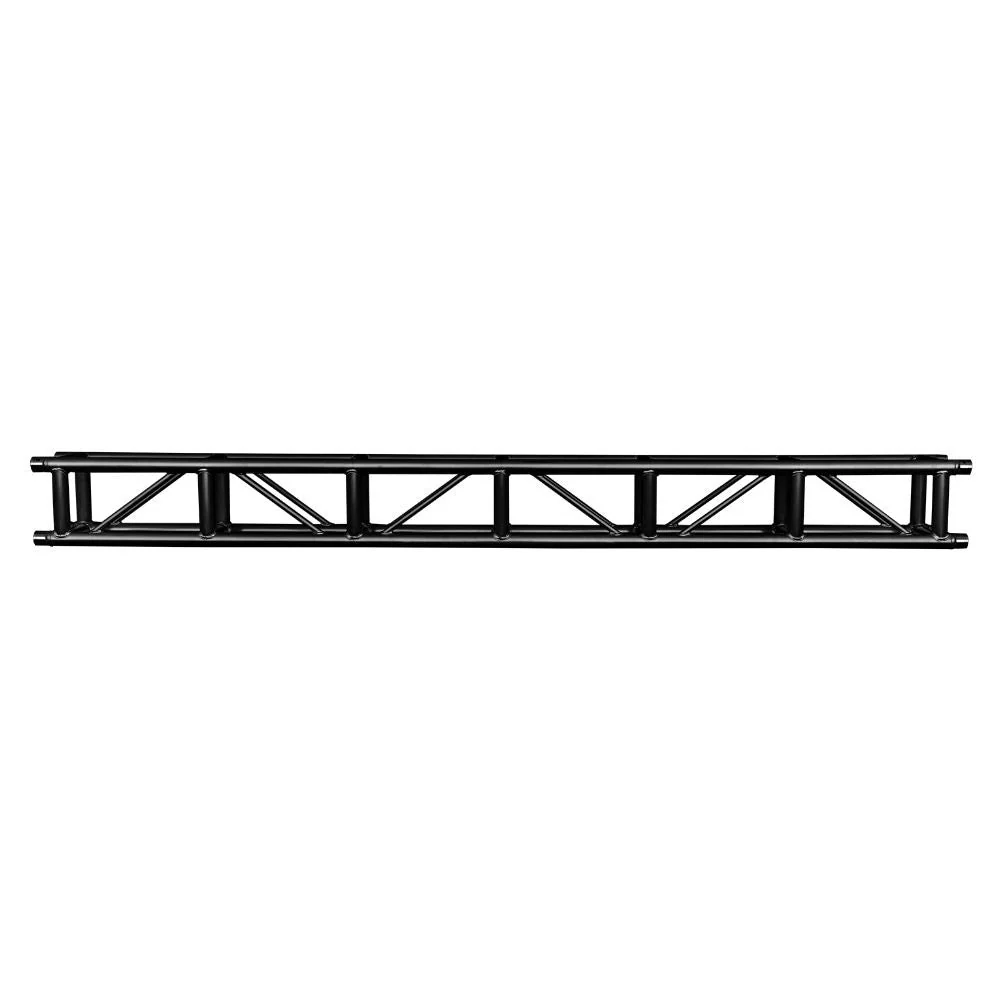

Event Lighting 290mm Box Truss Ladder Style (3m) Black T3BL3BK

The Event Lighting 290mm Box Truss Ladder Style is a 3-metre aluminium structural system designed for rigging and spanning lighting fixtures across medium–scale performance, installation, and touring environments. Built from 6061–T6 aluminium alloy with 2mm wall thickness, it balances weight savings against load capacity. The ladder–style design requires chords facing downward when horizontal, a critical detail for load rating compliance and structural integrity during deployment.

The truss measures 290 × 290 × 3000mm with a main tube specification of 50mm × 2mm and diagonals of 20mm × 2mm. Load capacity varies significantly across span lengths: at 1m, it handles 2500kg uniformly distributed or 2500kg centre point load; at 3m that drops to 750kg distributed and 1200kg centre load. Powder–coated black finish provides durability, whilst TÜV certification and Australian engineering documentation confirm structural compliance. A 3–year warranty covers manufacturing defects and normal operational use.

This truss suits mid–range touring rigs, festival installations, and permanent venue setups where stability and predictable loading matter. Selecting the correct span for your lighting weight is essential—refer to the load table for your geometry and anchor configuration. Pair with compatible clamps, safety wires, and mounting brackets from the Event Lighting ecosystem for complete rigging solutions.

Features

• 290 × 290 × 3000mm ladder–style box truss with 2mm wall thickness.
• Aluminium alloy 6061–T6 construction, black powder–coated finish.
• Main tube 50mm × 2mm; diagonals 20mm × 2mm structural design.
• 2500kg centre point load capacity at 1m span; 1200kg at 3m.
• TÜV certified with Australian engineering certificate and user manual.
• Chords must face downward when horizontal; orientation affects load ratings.
• Spans range 1–12m with graduated load capacity documentation.
• 3–year warranty covering manufacturing defects and operational use.
