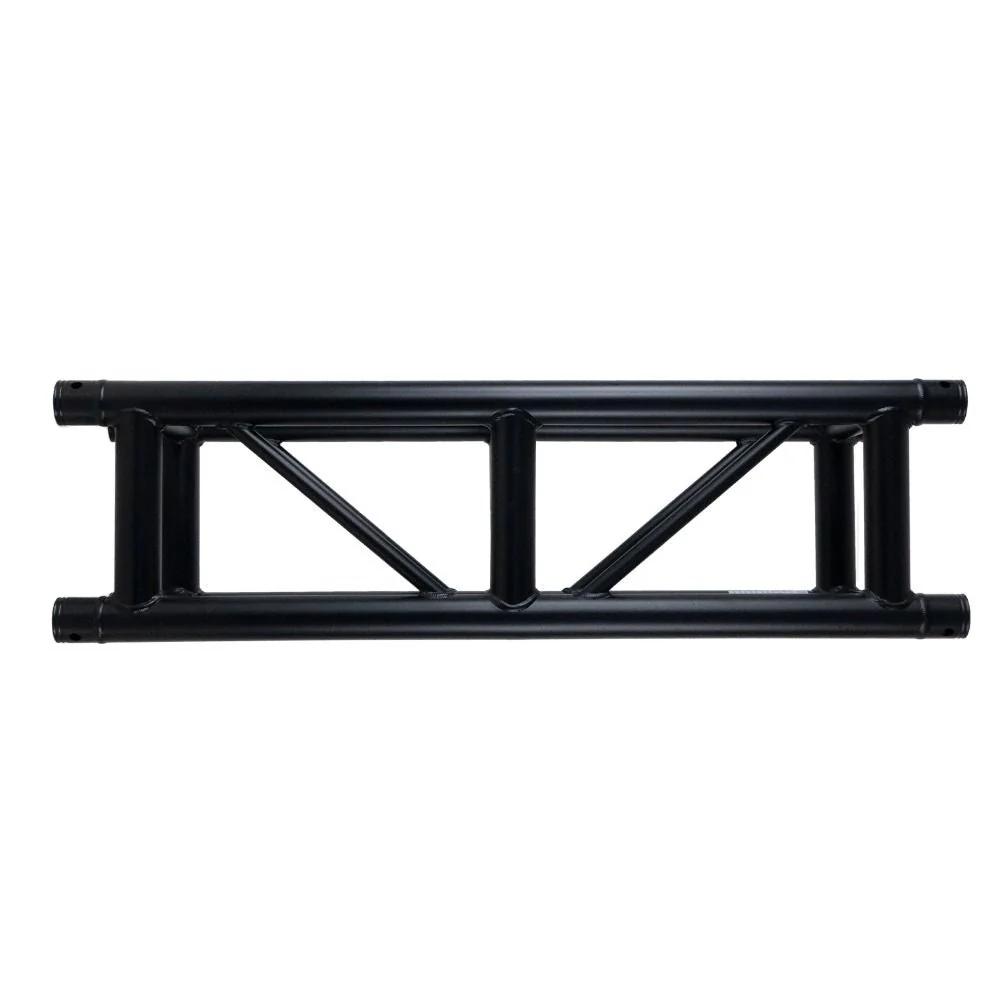

Event Lighting 290mm Box Truss Ladder Style (1m) Black T3BL1BK
The Event Lighting 290mm Box Truss Ladder Style delivers robust structural performance in a compact 1m footprint, purpose-built for touring rigs, festival installations, and fixed venue trusses. The ladder–style bracing geometry prioritises axial strength over versatility; correct orientation matters. Constructed from 6061–T6 aluminium alloy with TÜV certification, it's engineered to handle real–world load scenarios rather than hypothetical edge cases.
The main tube and vice brace both measure 50mm × 2mm wall thickness, whilst diagonal bracing runs 20mm × 2mm. Powder–coated black finish resists corrosion across outdoor applications. Load ratings vary significantly by configuration: a single metre span supports 1250 kg uniformly distributed, 2500 kg at centre point, or 1250 kg across three–point loads. Critical caveat: the chords must face downward when used horizontally to achieve rated loads; inverted orientation voids all structural guarantees entirely.
Dimensional footprint is 290 × 290 × 1000 mm, making it stackable and transport–friendly for touring operations. Load capacity degrades predictably as span increases—a 1.5 m configuration holds 1300 kg uniformly distributed versus 2500 kg at 1 m. Australian Engineering Certificate and user manual documentation support proper installation and safety compliance across professional venues and hired production environments.
Features
- 290mm square aluminium alloy 6061–T6 ladder–style truss section
- 1 metre length with 290 × 290 × 1000 mm overall dimensions
- 50mm × 2mm main tube and vice brace construction
- 20mm × 2mm diagonal bracing for load distribution
- Black powder–coated finish with TÜV certification
- 2500 kg centre–point load capacity at 1 metre span
- Chords must face downward when horizontal for rated performance
- Australian Engineering Certificate and user manual included
