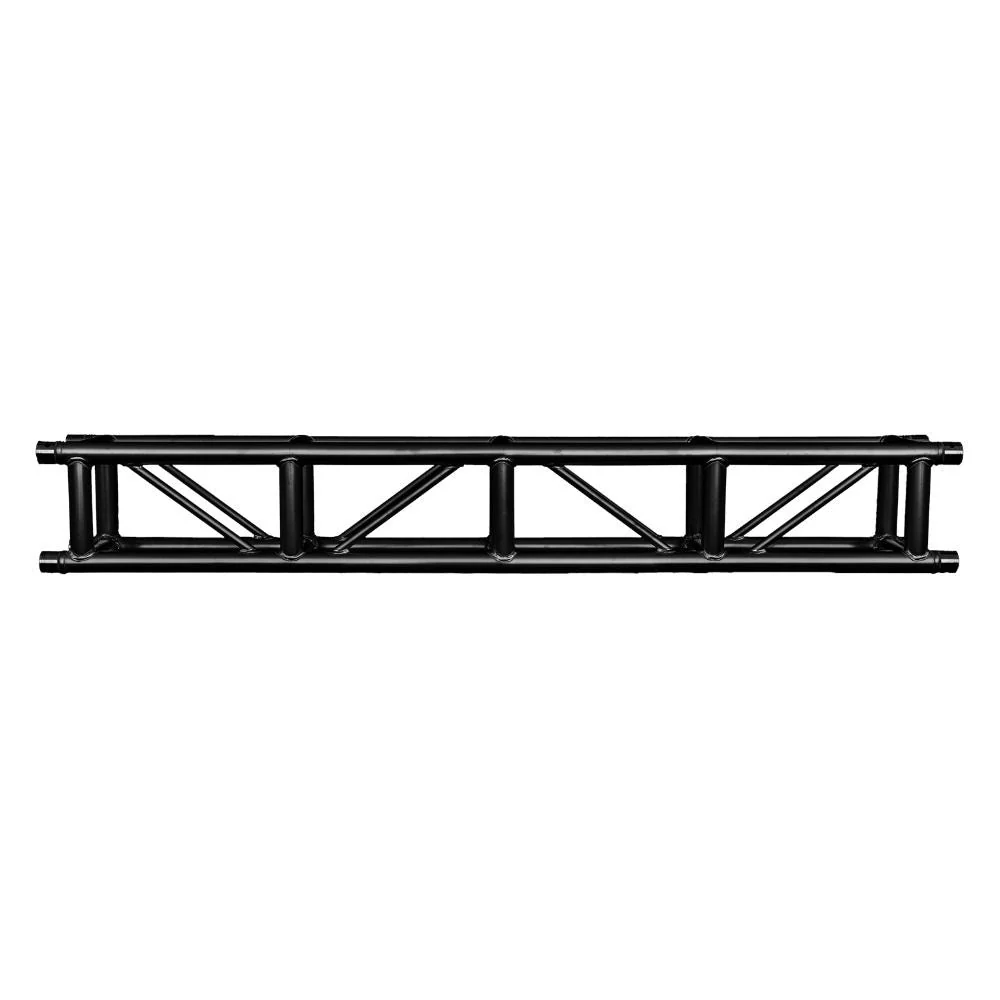

Event Lighting 290mm Box Truss Ladder Style (0.42m) Black T3BL042BK
The Event Lighting 290mm Box Truss Ladder Style is a compact structural solution for touring rigs and permanent installations where horizontal span and vertical load capacity matter. Built from aluminium alloy 6061–T6 with a 2mm wall thickness across main tube (50mm × 2mm) and bracing members, this 0.42m unit delivers certified TUV–rated performance and Australian engineering standards. The ladder configuration requires chords facing downward when deployed horizontally to maintain structural integrity and load ratings.
Specifications reveal substantial capacity across multiple load scenarios. At a 1m span, the truss handles 2500 kg uniformly distributed load or 2500 kg centre point load; at 6m span, those figures drop to 250 kg and 700 kg respectively. The powder–coated black finish resists UV degradation and suits both stage and outdoor festival applications. Dimensions of 290 × 290 × 420mm (length × width × height) allow integration into existing rig frameworks, whilst the 3–year warranty and downloadable Australian Engineering Certificate provide documented compliance for hire and touring operations.
Load tables across 12 span increments (1–12 metres) specify behaviour at 1/3 and 1/4 point loading positions, enabling precise rig design calculations for distributed lighting arrays, speaker systems, and drop–ceiling installations. Incorrect orientation voids all load ratings, making proper assembly documentation and crew training essential. Compatibility with standard clamps, mounting brackets, and safety wires simplifies integration into modular touring infrastructure.
Features
- Aluminium alloy 6061–T6 construction, 2mm wall thickness throughout main tube and bracing.
- Ladder style design requires downward–facing chords when horizontal; TUV–certified load ratings.
- 290mm × 290mm footprint, 0.42m length; dimensions support compact rig integration.
- 2500 kg centre point load capacity at 1m span; 700 kg at 6m span.
- Black powder–coated finish for UV resistance in outdoor touring and festival environments.
- Load tables for 12 span increments with 1/3 and 1/4 point load specifications included.
- 3–year warranty and downloadable Australian Engineering Certificate for hire and touring compliance.
- Compatible with standard clamps, mounting brackets, safety wires, and modular rig infrastructure.
