Event Lighting 290mm Box Truss Ladder Style (0.29m) Black T3BL029BK

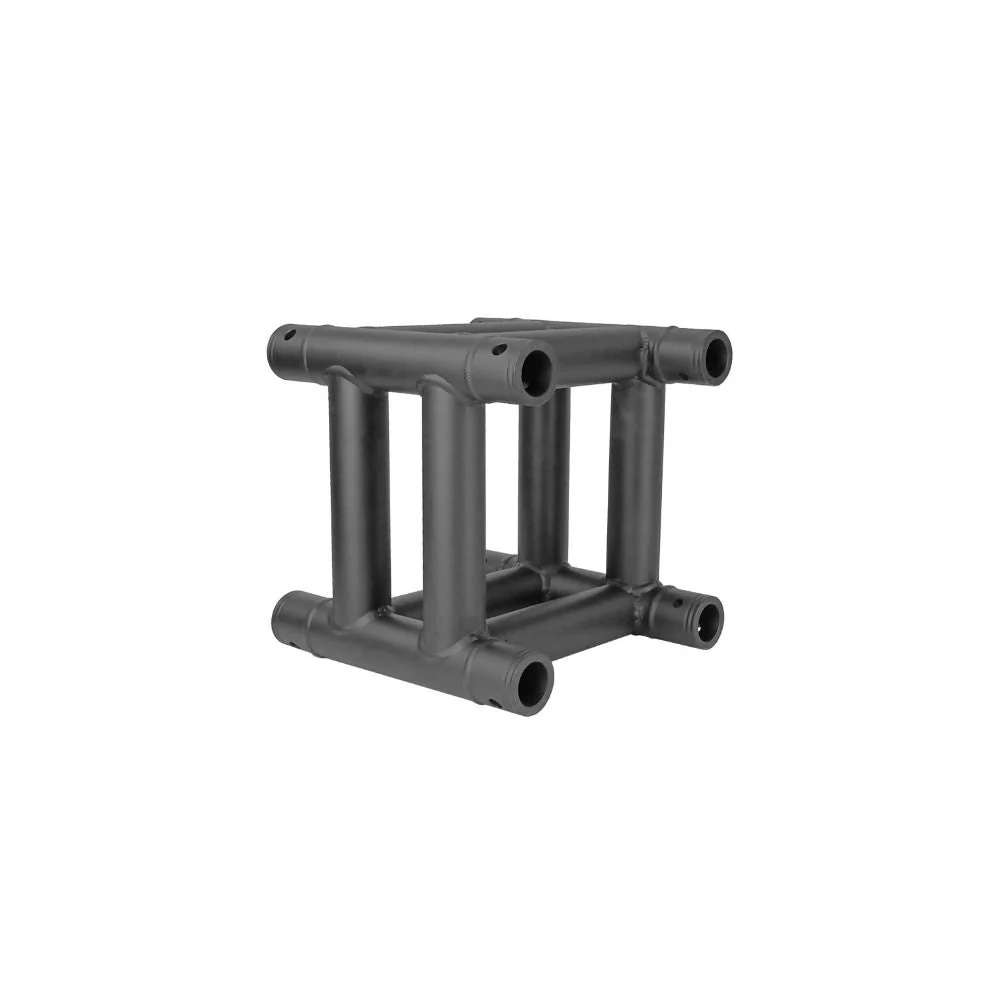

Box truss forms the structural backbone of touring rigs and venue installations. This 290mm ladder–style section is a 0.29m length segment built from 6061–T6 aluminium alloy, finished in black powder coat with TUV certification. A single unit interlocks with others to create grid spans for lighting fixtures, supporting both weight and vibration across the frequency range of modern moving heads and static rigs.
Construction relies on a 50mm × 2mm main tube paired with 50mm × 2mm vice braces and 25mm × 2mm diagonal bracing. The 290 × 290 × 290mm cube profile provides balanced rigidity without excessive mass, critical for systems requiring frequent setup and strike cycles. Aluminium alloy 6061–T6 resists corrosion and fatigue, whilst 2mm wall thickness maintains structural integrity under sustained touring loads. A three–year warranty backs durability in professional environments.
Features
- 290mm span length; modular ladder–style box truss configuration.
- 6061–T6 aluminium alloy with black powder–coat finishing.
- Main tube 50mm × 2mm; vice braces 50mm × 2mm diameter.
- Diagonal cross–bracing 25mm × 2mm reinforces load distribution.
- Square profile 290 × 290 × 290mm permits multi–axis rigging.
- TUV certification ensures structural safety compliance for venues.
- Compatible with spigot adapters, clamps, and safety wire systems.
- Three–year manufacturer's warranty included; user manual available.
Original: $88.15
-65%$88.15
$30.85Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Box truss forms the structural backbone of touring rigs and venue installations. This 290mm ladder–style section is a 0.29m length segment built from 6061–T6 aluminium alloy, finished in black powder coat with TUV certification. A single unit interlocks with others to create grid spans for lighting fixtures, supporting both weight and vibration across the frequency range of modern moving heads and static rigs.
Construction relies on a 50mm × 2mm main tube paired with 50mm × 2mm vice braces and 25mm × 2mm diagonal bracing. The 290 × 290 × 290mm cube profile provides balanced rigidity without excessive mass, critical for systems requiring frequent setup and strike cycles. Aluminium alloy 6061–T6 resists corrosion and fatigue, whilst 2mm wall thickness maintains structural integrity under sustained touring loads. A three–year warranty backs durability in professional environments.
Features
- 290mm span length; modular ladder–style box truss configuration.
- 6061–T6 aluminium alloy with black powder–coat finishing.
- Main tube 50mm × 2mm; vice braces 50mm × 2mm diameter.
- Diagonal cross–bracing 25mm × 2mm reinforces load distribution.
- Square profile 290 × 290 × 290mm permits multi–axis rigging.
- TUV certification ensures structural safety compliance for venues.
- Compatible with spigot adapters, clamps, and safety wire systems.
- Three–year manufacturer's warranty included; user manual available.
