Elite Acoustics | EAE | GigMix 4-1 | 4Ch Digital Mixer | w/ DSP Gate, Compressor, EQ, Reverb & Delay

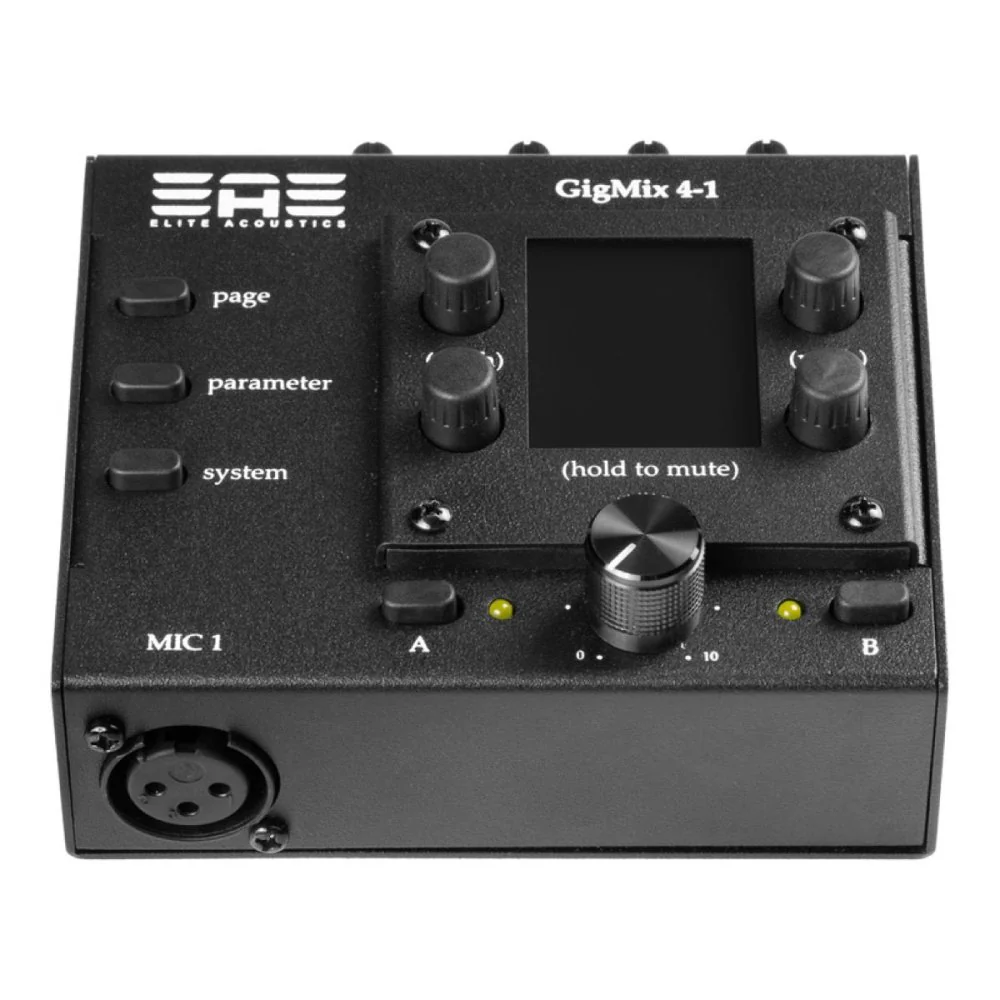

GigMix 4-1 is a four-channel mini digital mixer that can be used on table top or mounted on a Mic stand. It offers similar processing capabilities as the StompMix 4, but in a lighter Aluminum enclosure and without footswitches.

GigMix 4-1 is powered by a 32-bit, 100Mhz DSP engine. On top of four-channel mixing capabilities, the GigMix 4-1 arms you with a range of utility functions. These include a input level monitoring, compressor, limiter, mid-sweepable EQ, Notch Filter, phase reverse and high-pass filter, alongside effects such as reverb and delay.

• 4-Channel Mini Digital Mixer
• 10 user scene memories.
• Colour display
• Input Level Monitoring
• 1 Class-A Mic inputs with TRIM (CH 1) - No Phantom Supply
• 3 LINE/INSRT inputs with Level Control(CH 2, 3 & 4)
• Independent Reverb, Shimmer effect on each channel
• 2 notch filter available on each channel
• High Pass Filter and Phase Reverse on each channel
• Noise Gate and Compressor on each channel
• 3 Band EQ with Sweepable MID on each channel
• Max 1 second Delay with Tap Tempo (assign to one Channel at a time)
• Assignable A/B switch functions (MUTE channels, EFX by-pass, Tap Tempo, Scene change etc)
• Output 1 (L/R TRS 1/4″ jacks) – Balanced
• Output 2 (Stereo TRS 1/8″ jack)
• Output 2 can be used for Headphones
• Main MIX and AUX MIX
• Scenes Change  – via A/B switches
• Metal chassis
• AC/DC power supply included
• Support 9VDC to 12VDC power inputs (centre positive tip)
• Designed & Assembled in USA
• Mic Stand Mounting Kit is sold separately
