Elite Acoustics | EAE | GigMix 4-1 MAX | 4Ch Digital Mixer | w/ DSP Gate, Compressor, EQ, Reverb & Delay

The Elite Acoustics GigMix 4-1 MAX is a compact four-channel digital mixer designed for players who need a lightweight, gig-ready mixing solution without carrying a full-size console. Built around a 32-bit DSP engine, it brings flexible channel control, effects, scene memory, and multiple output options into a pocket-sized format.

It features one Class-A microphone input with +48V phantom power and pad, plus three 1/4” line/instrument inputs, making it ideal for acoustic guitar, vocals, small performance rigs, busking setups, compact stage systems, and pedalboard-based live rigs. Each channel includes useful live tools such as compression, noise gate, high-pass filter, phase reverse, notch filtering, and 3-band EQ with sweepable mids.

For effects, the GigMix 4-1 MAX includes independent Reverb and Shimmer level control on each channel, plus an assignable delay with tap tempo. The 10 user scene memories make it easy to save and recall different setups for gigs, rehearsals, or multiple instruments.

Output options include balanced stereo XLR outputs with level control, mute, and ground lift, plus stereo 1/4” TRS outputs and a headphone output with selectable monitoring. A 1/8” stereo AUX input is also included for backing tracks or external audio sources. The metal chassis keeps it road-ready, while the optional mic stand mounting accessory makes it easy to keep the mixer within reach during performance.

• 4-channel compact digital mixer for acoustic performers, singer-songwriters, small live rigs, and portable PA setups
• 32-bit DSP processing for clean, flexible signal control in a highly compact format
• Class-A microphone input with trim control, +48V phantom power, and pad switch
• Three 1/4” line/instrument inputs for guitars, keyboards, pedals, playback devices, or additional sources
• Per-channel input level monitoring for easier gain staging during setup
• Individual channel processing including compressor, noise gate, high-pass filter, phase reverse, and dual notch filters
• 3-band EQ on each channel with sweepable midrange for more precise tone shaping
• Independent Reverb and Shimmer level control per channel
• Assignable delay with tap tempo and up to 1 second of delay time
• 10 user scene memories for saving and recalling different performance or rehearsal setups
• Assignable A/B Switch button functions, including mute, effects bypass, tap tempo, and scene changes

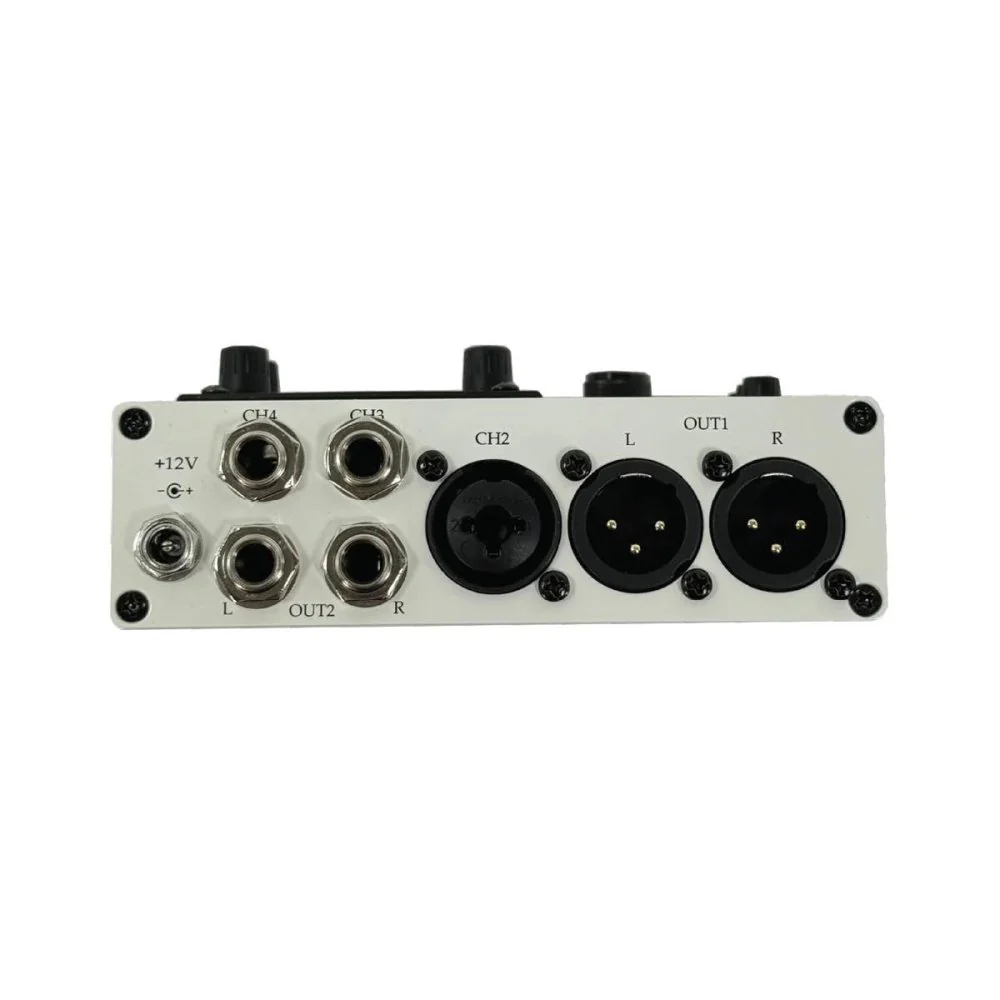

• Balanced stereo XLR main outputs with dedicated level control, mute function, and ground lift
• Stereo 1/4” TRS secondary outputs for flexible routing to monitors, recorders, or additional systems

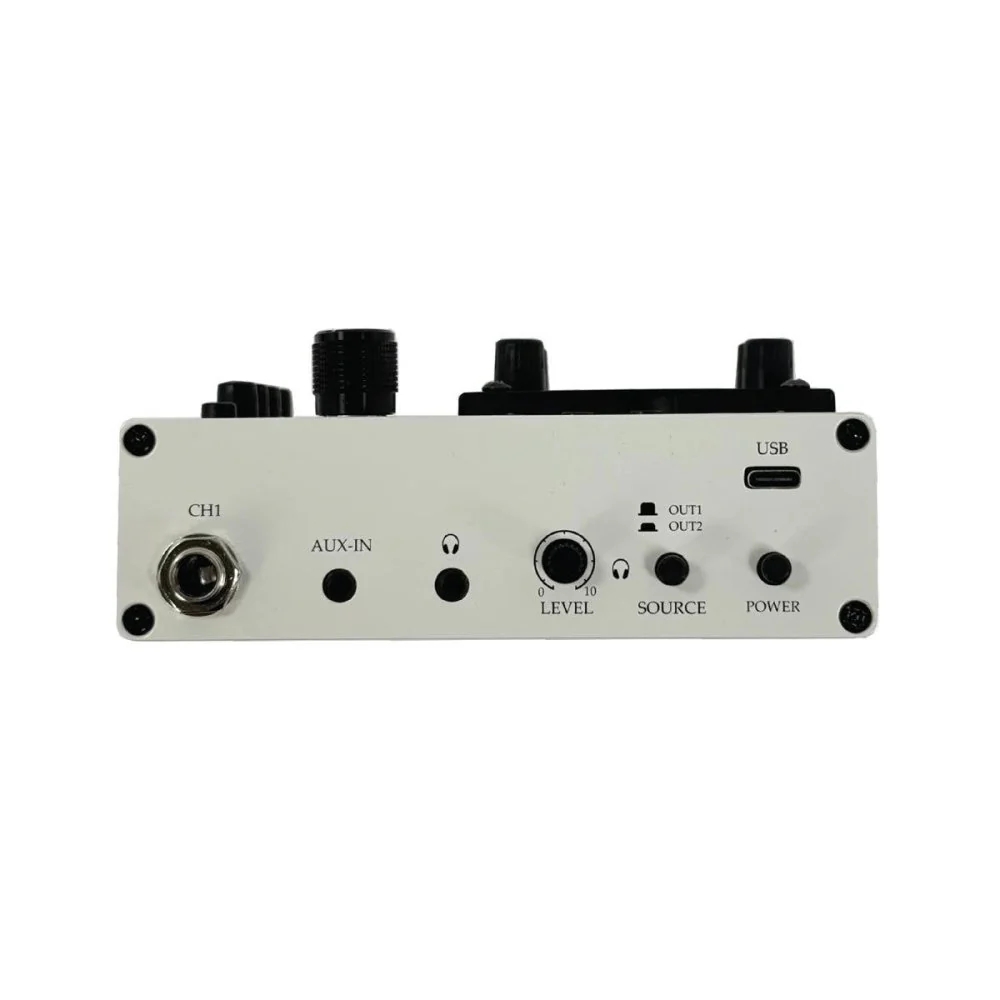

• Headphone output with selectable Out 1 or Out 2 monitoring and dedicated level control
• 1/8” stereo AUX input for backing tracks, music playback, or external audio sources
• Main Mix and AUX Mix routing options for practical live performance control

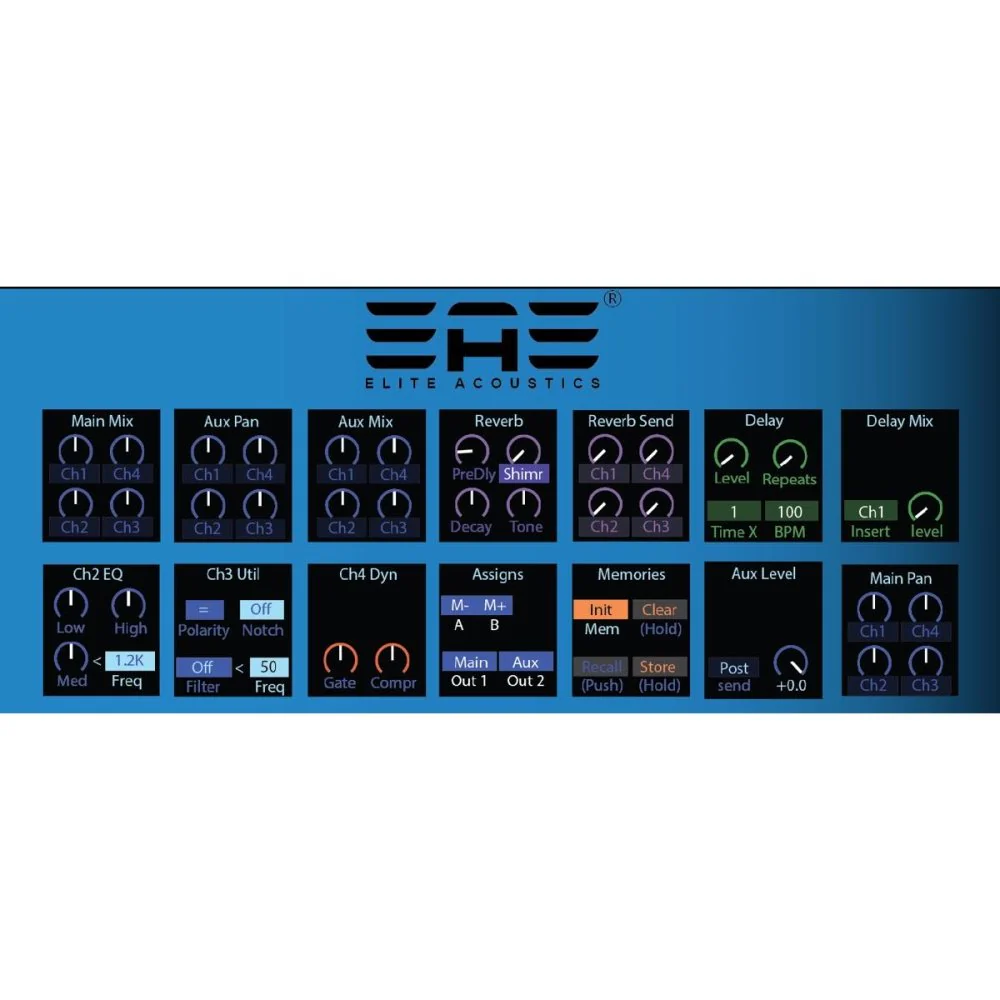

• Colour display for clear navigation and parameter adjustment
• Durable metal chassis designed for regular stage, studio, and rehearsal use
• Compact footprint suitable for pedalboards, desktop use, or mic stand mounting with optional accessory

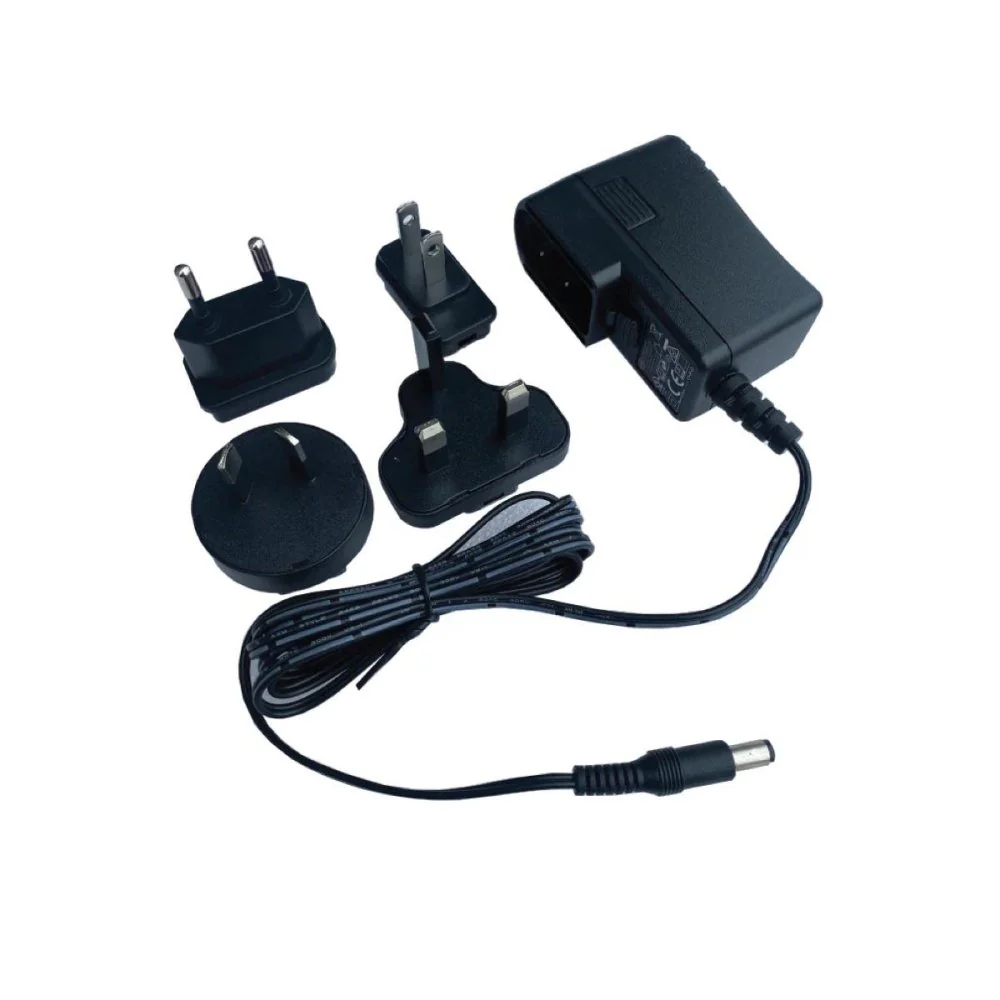

• Power supply included
• Size: 13 x 13 x 5.5 cm (includes knobs) / Weight: 560g (without PSU)
• 9V or 12V DC operation, 500mA, 2.1mm centre-positive power input
• Designed and assembled in the USA

Click Here to Download the Manual
