Blackmagic Design | MultiView 16

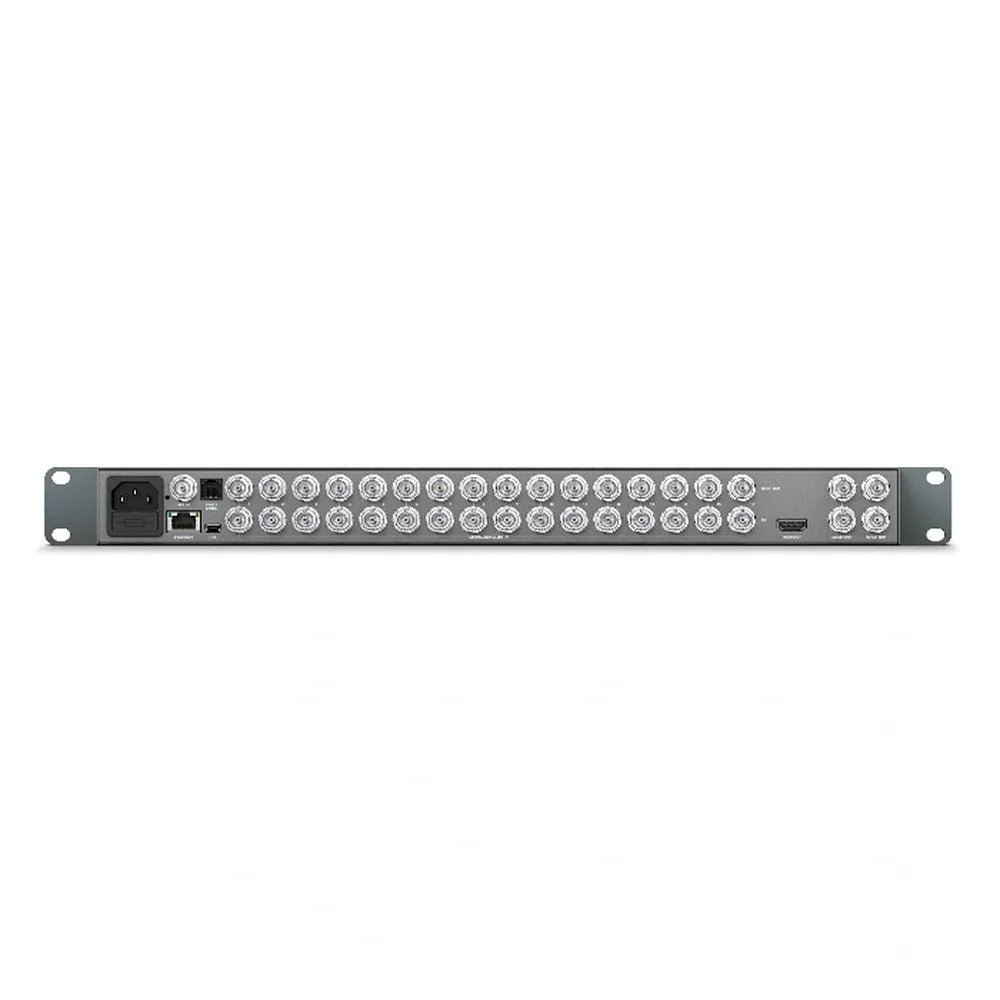

The Blackmagic Design MultiView 16 features sixteen 10-bit 6G-SDI inputs that let you monitor SD, HD, or 4K sources in any combination on Ultra HD monitors or TVs. This lets you take advantage of the high resolution displays to view each source with increased clarity. The MultiView 16 allows for 4, 9, or 19 views to be selected, with each input fully re-synchronised. Two HD-SDI, two 6G-SDI, and one HDMI multi-view outputs are provided, as well as a loop output for each 6G-SDI input for passing the signals to additional devices.

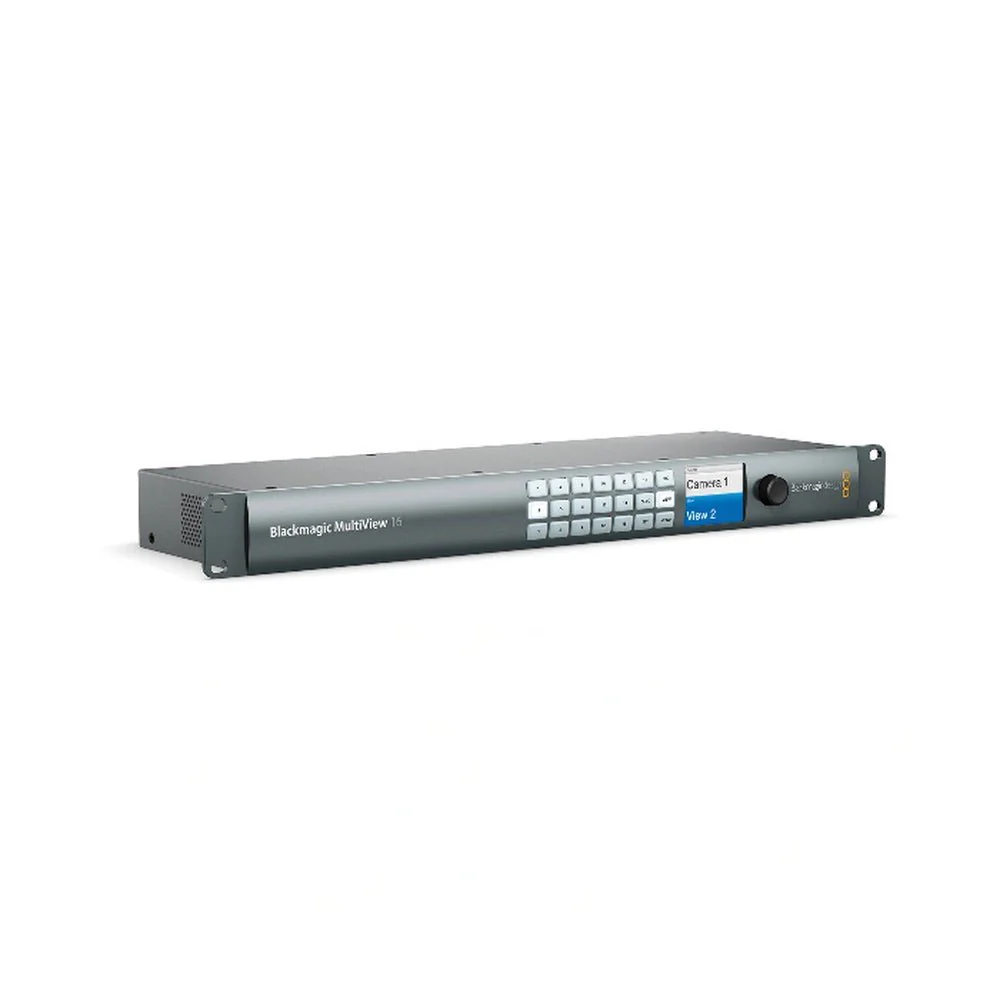

Housed in a 1RU machined aluminium frame, the MultiView 16 is ready for use in the studio, broadcast truck, or even on location. It can be controlled using the illuminated buttons, spin knob, and 1.5" LCD screen on the front panel, or with the included control software via the Ethernet port. A SOLO button lets instantly full screen a single source. For easy integration into any facility, a built-in multi-voltage power supply supports 90 to 240VAC.
Note: IEC power cable is not included.
Features
- Native Ultra HD multi-view output
- 16x 6G-SDI inputs; accepts SD, HD, and Ultra HD resolutions
- Supports Ultra HD 4K (3840x2160) up to 30p; DCI 4K (4096x2160) at 24p
- 2x 6G-SDI, 2x HD-SDI, and 1x HDMI multi-view outputs
- 16x SDI loop outputs
- 2x2, 3x3, and 4x4 multi-view configurations
- SOLO button for instant full screen of single source
- 2-channel audio metres for each view
- 16x9 SD support
- Tally support with ATEM switchers
- 1RU machined aluminium chassis
- Front panel control using illuminated buttons, spin knob, and 1.5" LCD screen
- Software control over Ethernet; supports Videohub router protocol
- Built-in 90 to 240VAC power supply
- IEC power cable required
