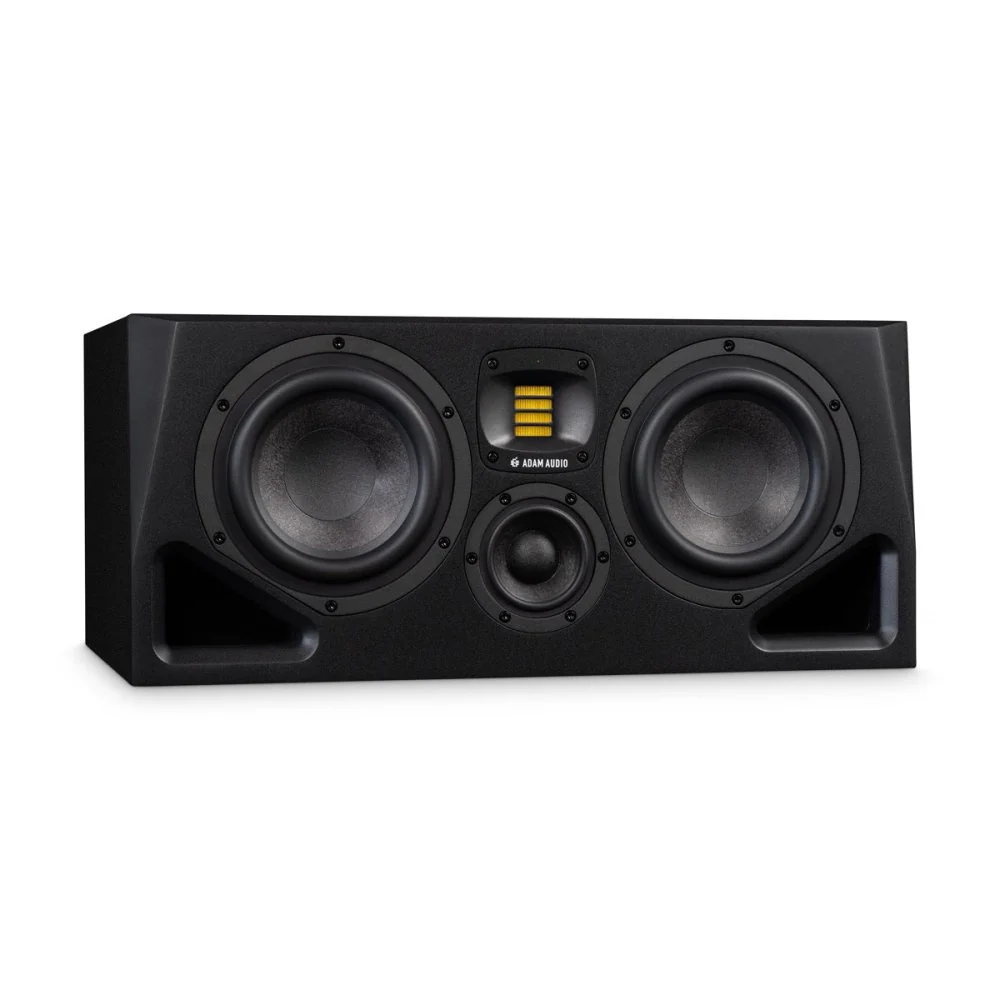

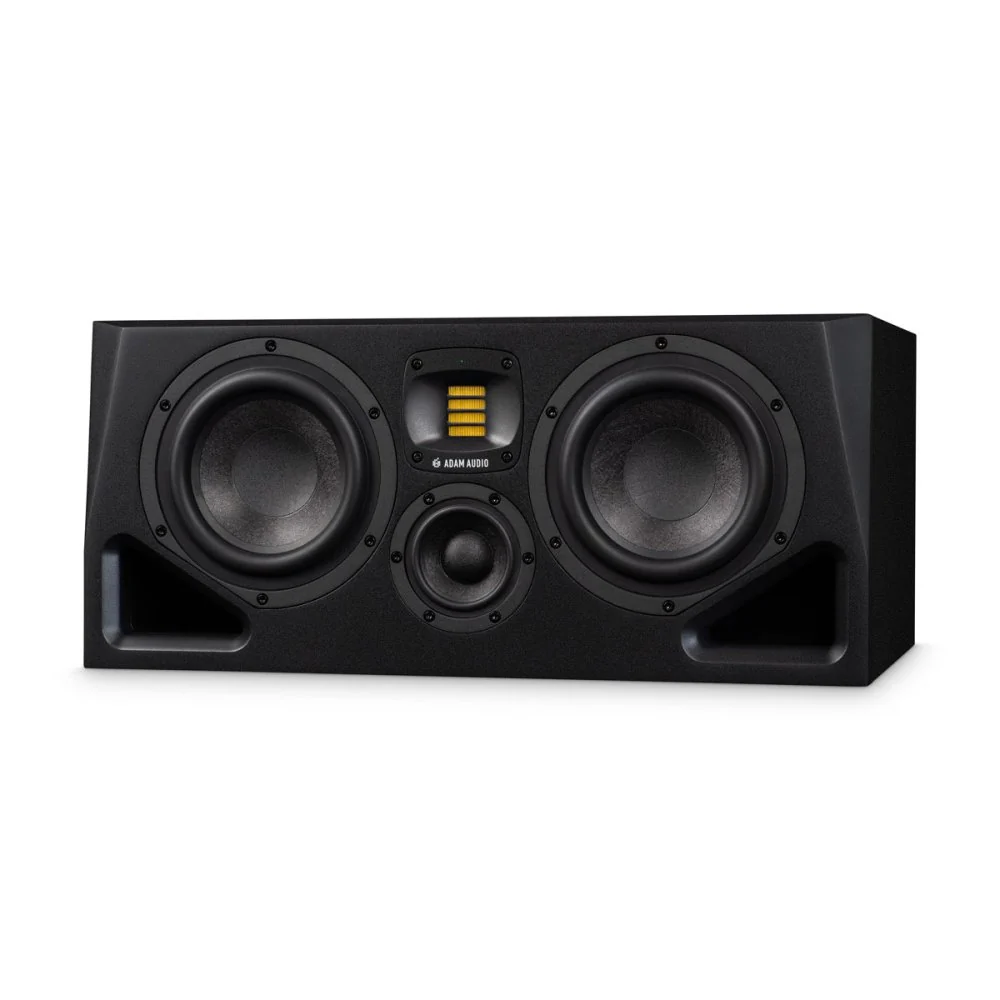

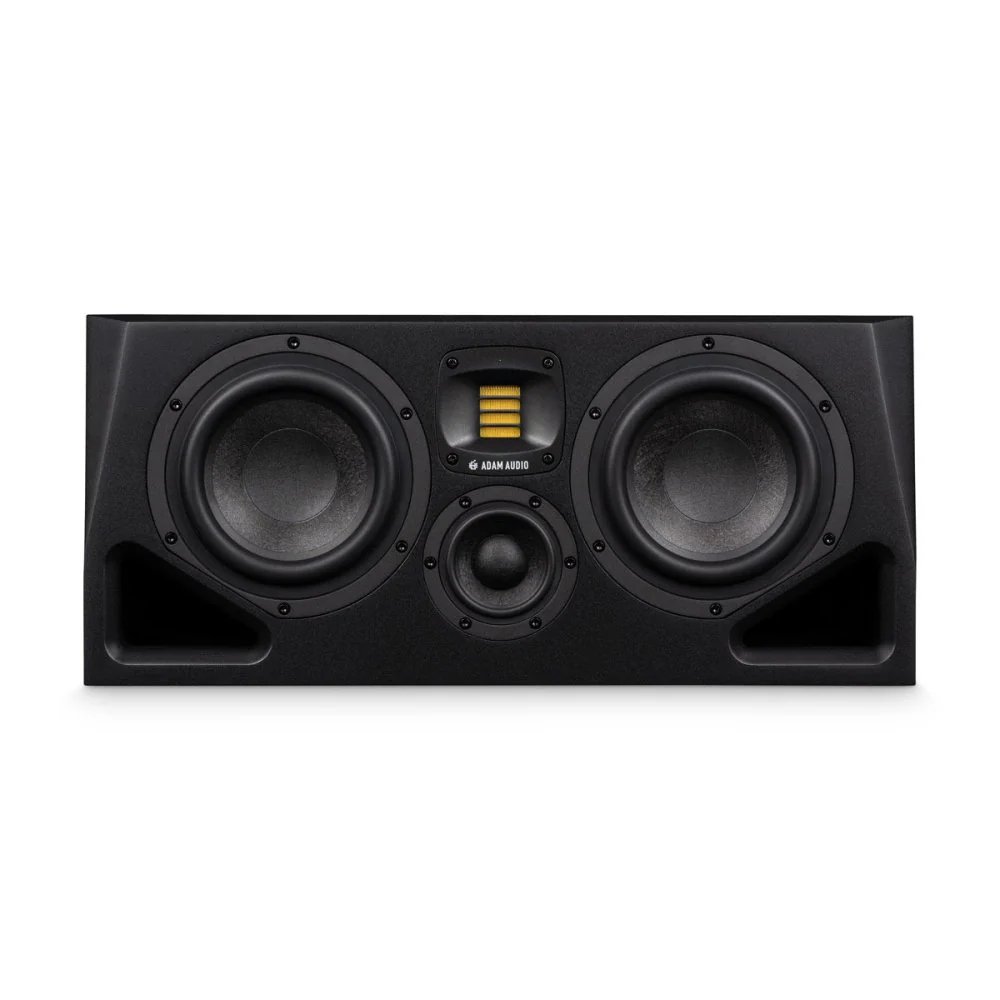

ADAM | A77H | 3-Way 2 x 7" Active Studio Monitors | w/ DSP based Environment Tuning

An advanced successor to the A77X, the A Series A77H is a true three-way midfield monitor that capitalizes on the latest ADAM Audio technologies to deliver a rich, spacious, and enveloping sound. Incorporating two 7-inch woofers, a midrange driver, and ADAM Audio’s X-ART tweeter, the A77H delivers an ultra-wide frequency range. The addition of the midrange driver helps produce clear sound in the most sensitive range of human hearing. Rotatable HPS waveguide technology and onboard DSP allow you to tune the sound for your precise requirements. 

FEATURES

• Tweeter: Rotatable X- ART Tweeter + HPS Waveguide
• Midrange Driver: 3.5” MLM midrange driver
• Midrange Voice Coil Ø: 33 mm / 1.3”
• Woofer: 2 x 7" MLM mid-woofer
• Woofer Voice Coil Ø: 38 mm / 1.5”
• AD convertor: 24-bit
• Internal sample rate: 96 kHz
• Amplifier power RMS: 250 W (Woofer) + 70 W (Midrange Driver) 20 W (Tweeter)
• Crossover frequency: 400Hz – 3.0 kHz
• Power rating: 500 W max
• Analog Inputs (balanced): 1x XLR
• Analog Inputs (unbalanced): 1x RCA
• Net Weight: 17.1 kg / 37 lbs 11 oz
• Gross Weight: 20.5 kg / 45 lbs 3 oz
• Cabinet Height x Width x Depth: 236 mm x 531 mm x 350 mm [9 1/4" x 20 7/8" x 13 3/4"]
• Gift Box Dimensions: 370 mm x 665 mm x 475 mm [14 5/8“ x 26 1/8“ x 18 3/4“ ]

AC Input Voltage: 100 - 240V, 50/60 Hz
